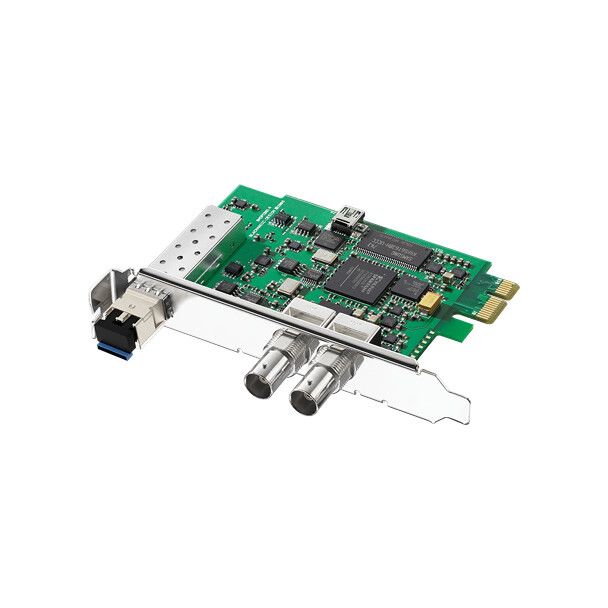

Blackmagic Design UltraScope interface cards/adapter Internal Fiber
GTIN: 9338716000641
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
See the current products in: SmartScope

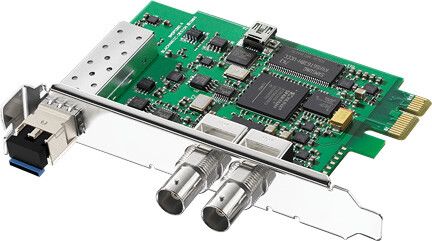

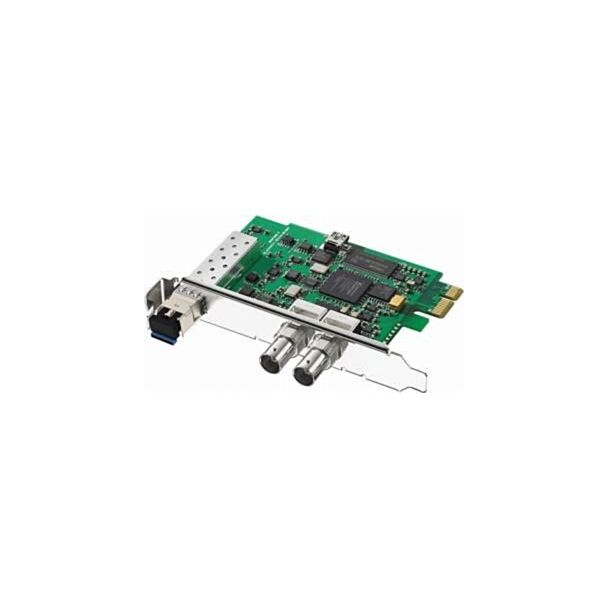

PCI Express card with UltraScope software for waveform monitoring on a computer, with copper and optical fiber 3 Gb/s SDI inputs and reclocked loop-through outputs.
Blackmagic UltraScope
Blackmagic UltraScope combines a PCI Express card and a software package that turn a PC and display into a set of broadcast scopes for master monitoring and quality control. It automatically detects SD, HD and 3 Gb/s HD-SDI and has both copper BNC SDI inputs and optical fiber SDI inputs; the input is available as a reclocked loop-through on the copper and optical outputs.
The software shows parade, waveform, vectorscope, histogram, audio metering, picture and error logging views; a 1920 x 1080 or 1920 x 1200 display allows all six scopes on screen at once. The card is x1 lane PCI Express and works in x1, x4, x8 or x16 slots; a compatible graphics card is required.
Key features
- 3G/HD/SD-SDI input and output on BNC
- Optical fiber SDI input and output
- Reclocked SDI loop-through
- Parade, waveform, vectorscope, histogram, audio metering, picture and error logging views
- Automatic detection of SD, HD and 3 Gb/s HD-SDI
- x1 lane PCI Express card for Mac and Windows
Specifications
- Interface: PCI Express x1
- Operating temperature: 0-40 °C
- Weight: 104 g
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | TVTEUS/PCI |
| Ean | 9338716000641 |
| Modified on | 26-10-2013 |
| Warranty | 12 Months Limited Manufacturer's Warranty |
| Product title | Blackmagic Design UltraScope interface cards/adapter Internal Fiber |
| Long Product Name | UltraScope, PCI Express, SDI, Optical Fiber |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* Fiber DesignInternal* Yes Product colour Silver FeaturesData transfer rate (max) 3 Gbit/s Operational conditionsOperating temperature (T-T) 0 - 40 °C Operational conditionsStorage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% System requirementsWindows operating systems supported Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac operating systems supported Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Weight & dimensionsDepth 146 mm Weight 104 g |
