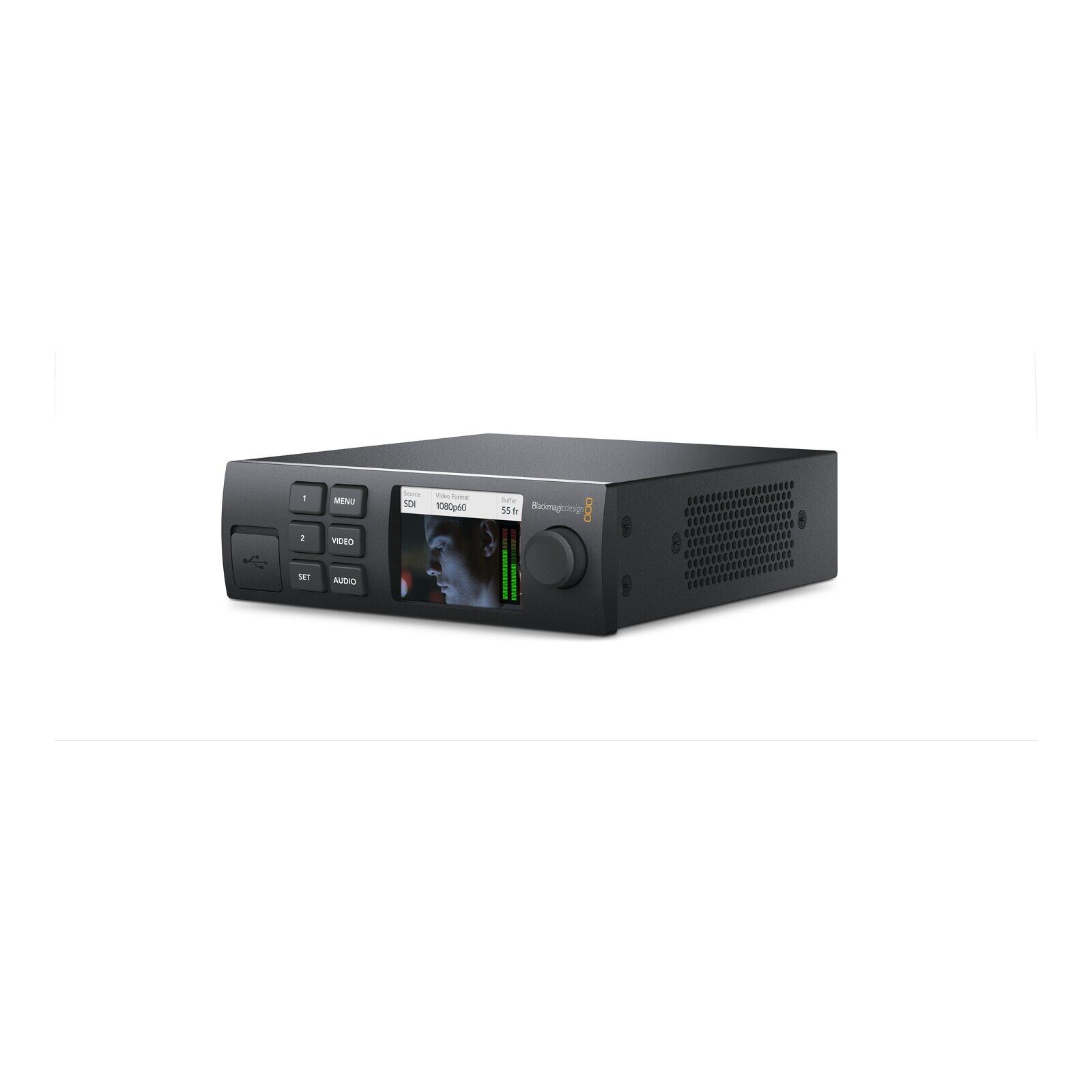

Blackmagic Design UltraStudio HD Mini – Thunderbolt interface, 3G-SDI, HDMI and analog
GTIN: 9338716004809
UltraStudio HD Mini: Thunderbolt 3 interface with 3G-SDI and analog input, 3G-SDI fill and key outputs, HDMI output, reference and RS-422 control, for SD and HD.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Blackmagic Design UltraStudio HD Mini – Thunderbolt interface, 3G-SDI, HDMI and analog
UltraStudio HD Mini is an external Thunderbolt 3 interface for capturing and playing back broadcast video in SD and HD with a laptop or a computer without slots. It has 3G-SDI, analog component and composite video and analog audio inputs, 3G-SDI outputs with fill and key, and an HDMI output for monitoring.
What UltraStudio HD Mini is for
It suits live graphics and titling, thanks to the fill and key outputs for keying in switchers, capture from decks including analog ones controlled over RS-422, and HDMI monitoring while editing.
Connections
1 x 3G-SDI input, 2 x 3G-SDI outputs (dual link, fill and key), 1 x HDMI 1.4b output, analog video input Y, B-Y, R-Y or NTSC/PAL, 2 x 1/4 inch jack audio inputs for balanced and unbalanced sources, Black Burst or Tri-Sync reference input, RS-422 port. SD and HD formats up to 1080p60.
Connection and compatibility
It connects to a Thunderbolt 3 USB-C port. It works on Mac, Windows and Linux with the Desktop Video driver, which includes Media Express, Disk Speed Test and the setup utility, and is compatible with the main editing, graphics and streaming software.
UltraStudio HD Mini or 4K Mini?
For Ultra HD and 4K you need UltraStudio 4K Mini, with 12G-SDI and HDMI 2.0b. For HD work with fill and key and analog connections, HD Mini is more compact and affordable.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 1 x 3Gb/s SD/HD switchable. |
|---|---|
| SDI Video Outputs | 2 x 3Gb/s SD/HD switchable, supports fill and key. |
| SDI Rates | 270Mb, 1.5G, 3G |
| Optical SDI | None |
| HDMI Video Inputs | None |
| HDMI Video Outputs | 1 x HDMI 1.4b type A connector. |
| Analog Video Inputs | Y, B-Y, R-Y/NTSC/PAL. |
| Analog Video Outputs | None |
| Analog Audio Inputs | 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio. |
| Analog Audio Outputs | None, embedded audio only. |
| SDI Audio Inputs | 16 Channels embedded in SD and HD. |
| SDI Audio Outputs | 16 Channels embedded in SD and HD. |
| HDMI Audio Outputs | 2 Channels embedded in SD and HD. |
| Timecode Connection | None. RP-188 only. |
| Reference Input | Tri-Sync or Black Burst. |
Supported Codecs
| AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2. |
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | None |
| 4K Video Standards | None |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television rate of 48kHz and 24 bit. |
| SDI Video Sampling | 4:2:2/4:4:4 |
| Color Space | REC 601, REC 709. |
| HDMI Resolution | Pixel for pixel HD resolution input from connected device. |
| Multiple Rate support | SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
Hardware Frame Buffer
| v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB). |
Color Precision
| HDMI | 8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
|---|---|
| SDI | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
Computer Capture
| 1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK. |
Control
| Built in Control Panel | None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status. |
|---|---|
| Device Control | 1 x RS-422 deck control. |
Processing
| Colorspace Conversion | Hardware based real time. |
|---|---|
| HD Down Conversion | Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. |
| Real Time Effects | Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve. |
| Physical Installation | Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. |
Power Requirements
| Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port. |
Environmental Specifications
| Operating Temperature | 5° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
| UltraStudio HD Mini Welcome wallet with QR code for software download DaVinci Resolve SD card |
Warranty
| 3 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKULSDMINHD |
| Ean | 9338716004809 |
| Taric Code | 8543709099 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
| Product specifications | PerformanceProduct colour* Black Internal* No VideoAnalog signal format system* NTSC, PAL Maximum frame rate 60 fps Video capturing speed (PAL) 50 fps Video capturing speed (NTSC) 59.94 fps Supported video modes 525i, 625i, 720p, 1080i, 1080p Ports & interfacesNumber of HDMI outputs 1 Audio (L/R) in 1 Component video (YPbPr/YCbCr) in 1 Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 140 mm Depth 170 mm Height 44 mm Weight 610 g Packaging contentQuantity 1 |
| Product colour | Black |
| Internal | No |
| Analog signal format system | NTSC, PAL |
| Maximum resolution | HD |
| SDI rate | 3G |
| SD support (PAL/NTSC) | Yes |
| Function | Capture and playback |
| Computer interface | Thunderbolt |
| Video connection type | SDI, HDMI, Analog |
| Independent channels | 1 |
| Channel configuration | Fixed inputs and outputs |
| Format | External unit |
| Reference input | Yes |
| Operating systems | macOS, Windows |
