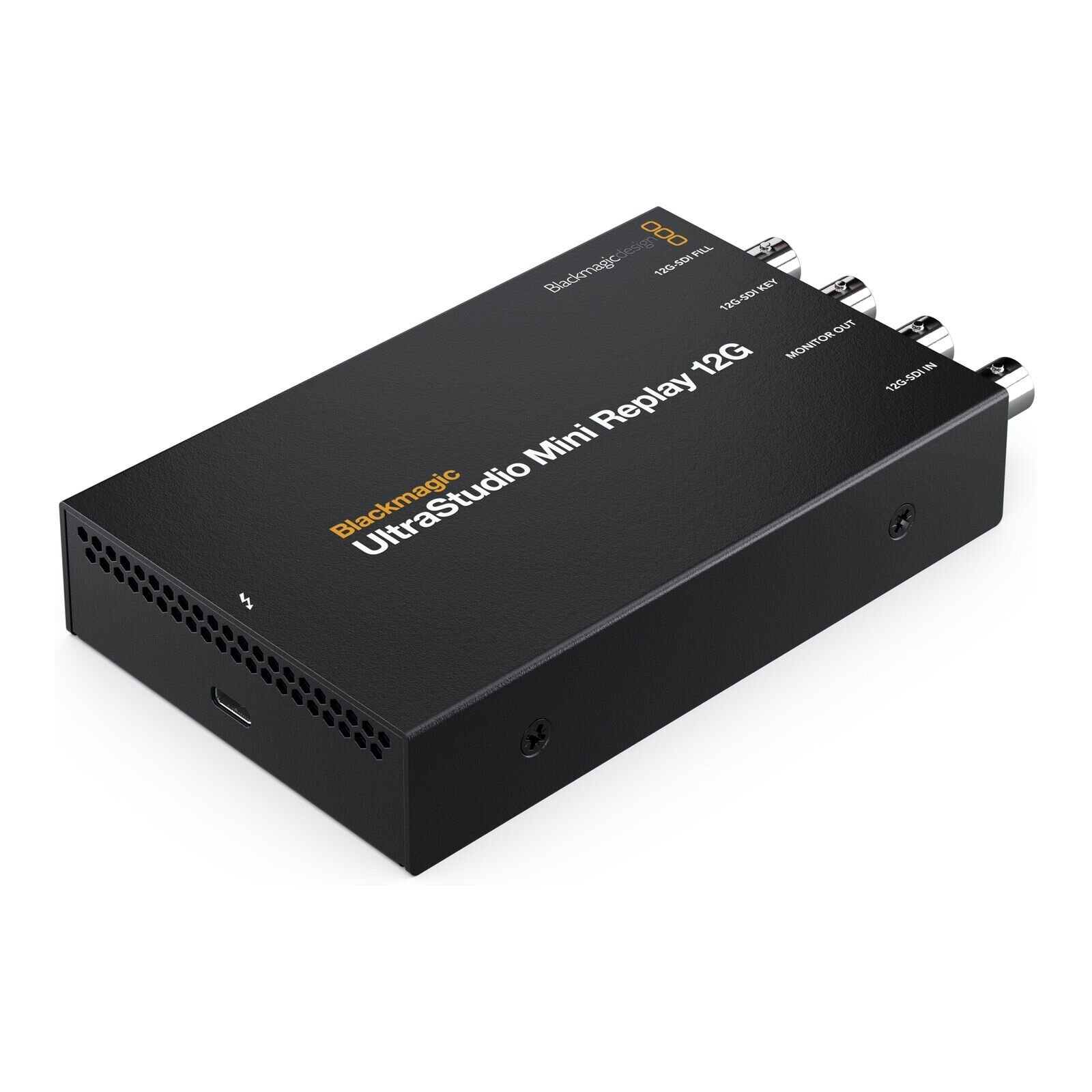

Blackmagic Design UltraStudio Mini Replay 12G – Thunderbolt 12G-SDI with fill and key
GTIN: 9338716010435
UltraStudio Mini Replay 12G: compact Thunderbolt interface with 12G-SDI input, fill and key outputs and a monitoring output, for broadcast graphics and replay up to 2160p60.
Blackmagic Design UltraStudio Mini Replay 12G – Thunderbolt 12G-SDI with fill and key
UltraStudio Mini Replay 12G captures and plays back over a single Thunderbolt cable: it has a 12G-SDI input, fill and key outputs for keying in switchers and a separate monitoring output, from HD to Ultra HD up to 2160p60.
What UltraStudio Mini Replay 12G is for
It is designed for broadcast graphics, live action replay in sports, for example with DaVinci Resolve Replay, and AI image processing, where the signal has to be received, processed and sent back to air.
Connections
1 x 12G-SDI input and 2 x 12G-SDI outputs (fill and key), 1 x SDI monitoring output, 16 embedded audio channels in and out. SDI rates 270 Mb, 1.5G, 3G, 6G and 12G.
Connection and compatibility
It connects over Thunderbolt 4 to Apple Silicon Macs, Windows and Linux computers. It works on Mac, Windows and Linux with the Desktop Video driver, which includes Media Express, Disk Speed Test and the setup utility, and is compatible with the main editing, graphics and streaming software.
Mini Replay 12G, Mini Recorder 12G or Mini Monitor 12G?
Mini Recorder only captures, Mini Monitor only plays back; Mini Replay does both over SDI, and is the one when the computer has to send the processed signal back.
bmdonline.eu is an authorized Blackmagic Design reseller: the official extended warranty is also available for this product.
Technical specifications
Connections
| SDI Video Inputs | 1 |
|---|---|
| SDI Video Outputs | 2 |
| SDI Fill Outputs | 1 |
| SDI Key Outputs | 1 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| SDI Audio Inputs | 16 channels embedded audio on SDI input. |
| SDI Audio Outputs | 16 channels embedded audio on SDI output. |
| Computer Interface | Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux) |
Supported Codecs
| Video Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
|---|
Software
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
|---|---|
| Internal Software Upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
SDI Video Standards
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Color Space | Rec. 601, Rec. 709 and Rec. 2020. |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K. |
Processing
| Colorspace Conversion | Hardware based real time. |
|---|
Power Input
| Powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port. 15 W |
Physical Installation
| Works with Apple Silicon Macs and Thunderbolt 4 / Thunderbolt 5 PCs. |
Environmental Specifications
| Operating Temperature | 5° to 40° C (32° to 104° F) |
|---|---|
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
| UltraStudio Mini Replay 12G Welcome wallet with QR code for software download |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKULSDZMINREP12G |
| Ean | 9338716010435 |
| Taric Code | 8543709099 |
| Maximum resolution | Ultra HD |
| SDI rate | 12G |
| SD support (PAL/NTSC) | Yes |
| Function | Capture and playback |
| Computer interface | Thunderbolt |
| Video connection type | SDI |
| Independent channels | 1 |
| Channel configuration | Fixed inputs and outputs |
| Format | External unit |
| Operating systems | macOS, Windows, Linux |
