Blackmagic Design Universal Videohub Optical Fiber
GTIN: 9338716001013
In stock
SKU
BMD-VHUBUV/IF/OPT
Special Price €1,015.77 €832.60 Regular Price €1,104.10
Hot-swappable optical fibre interface card for Universal Videohub 72 and 288 routers, with 4 inputs, 4 outputs and 4 deck control ports, 25 km range at 3 Gb/s.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

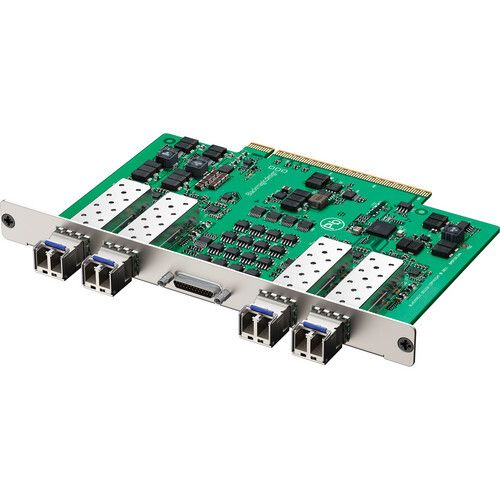

Blackmagic Universal Videohub Optical Fiber Interface
The Universal Videohub Optical Fiber Interface is a hot-swappable card module for the Videohub 72 and 288 rack frame routing switchers. It provides 4 inputs and 4 outputs as well as ports for remote control of up to 4 decks. It also features built-in SDI re-clocking, SD/HD/3 Gb/s auto-switching, and 1310 nm laser drivers and receivers with a 25 km range at 3 Gb/s.
Key features
- Hot-swappable card module
- 4 optical fibre inputs and 4 outputs
- Remote control of up to 4 decks
- Built-in SDI re-clocking
- SD/HD/3 Gb/s auto-switching
- 1310 nm laser drivers and receivers, 25 km range at 3 Gb/s
Compatibility
- Blackmagic Universal Videohub 72
- Blackmagic Universal Videohub 288
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | VHUBUV/IF/OPT |
| Ean | 9338716001013 |
| Modified on | 14-08-2014 |
| Product title | Blackmagic Design Universal Videohub Optical Fiber interface cards/adapter Internal |
| Long Product Name | Universal Videohub Optical Fiber Interface |
| Product specifications | Ports & interfacesHost interface* PCIe DesignInternal* Yes FeaturesBandwidth 3 Gbit/s |
