Blackmagic Design URSA Cine 17K 65
GTIN: 9338716009484
In stock
SKU
BMD-CINEURSAAD17K65B
Special Price €23,205.62 €19,021.00 Regular Price €25,223.50
Digital film camera with 65mm RGBW sensor, 17520 x 8040, 16 stops of dynamic range and interchangeable lens mounts, with 8TB Media Module.
Blackmagic Design URSA Cine 17K 65

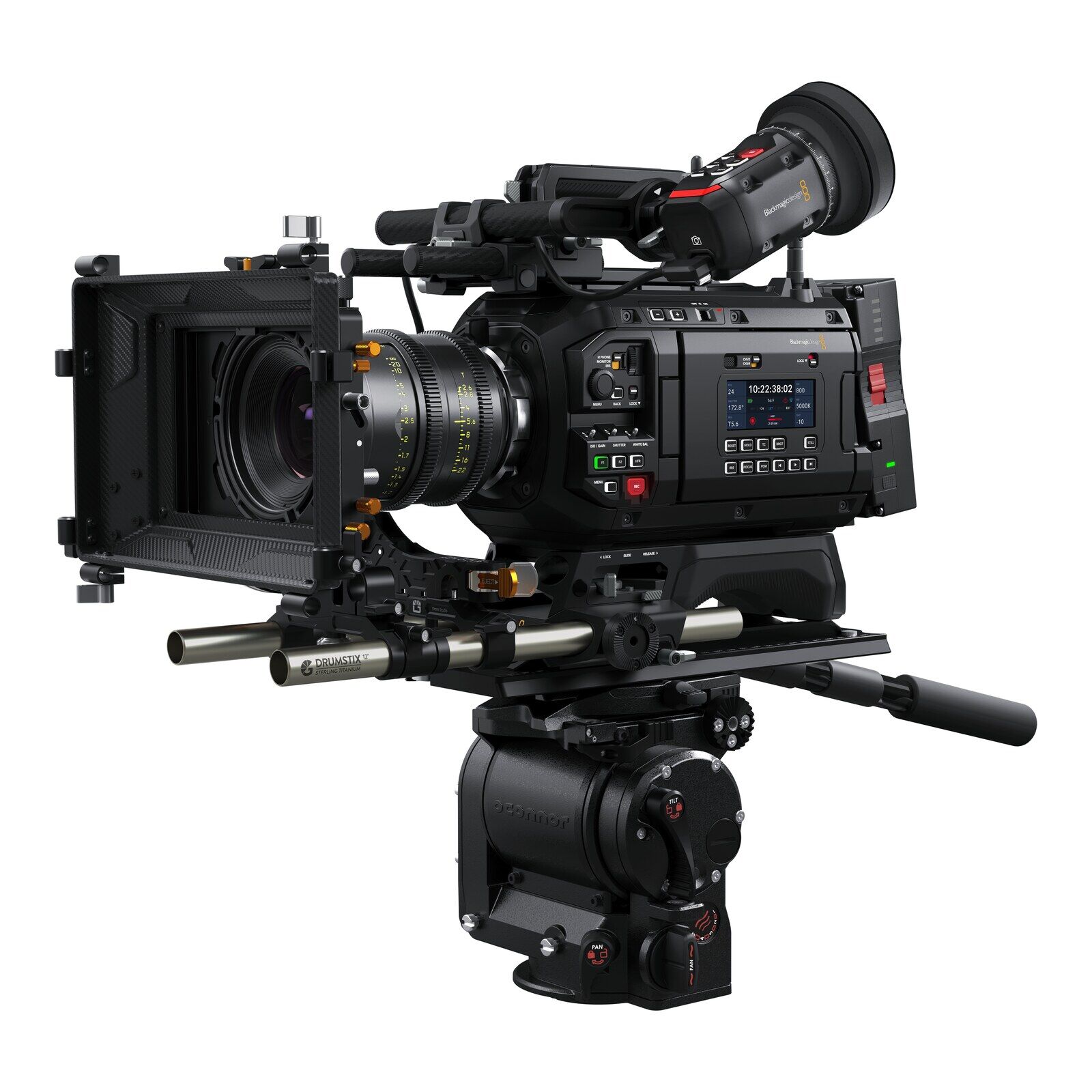

The Blackmagic URSA Cine 17K 65 is a digital film camera with a 65mm RGBW sensor at 17520 x 8040 resolution, with larger photosites and 16 stops of dynamic range. It has interchangeable lens mounts, an assist station with a second 5 inch HDR LCD touchscreen and Lemo and Fischer connections.
Includes the 8TB Blackmagic Media Module. 10G Ethernet and WiFi for file transfer and syncing with Blackmagic Cloud.
Technical specifications
Camera Features
| Effective Sensor Size | 50.81 mm x 23.32 mm (65mm Format) |
|---|---|
| Pixel Pitch | 2.9 microns |
| Lens Mount | PL mount. Interchangeable with URSA Cine Mount LPL included. |
| Lens Control | Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. |
| Dynamic Range | 16 Stops |
| Shooting Formats | 17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. |
| High Speed Frame Rates | 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps |
| Built in ND Filters | None |
| Focus | Focus button turns on peaking, auto focus available using compatible lenses. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. |
| Screens | 2 x Monitoring Screens 1 x Camera Status Screen |
| Monitoring Screen Dimensions | 5 inch. |
| Monitoring Screen Resolution | 1920px x 1080px |
| Monitoring Screen Brightness | 1500 nits. |
| Monitoring Screen Type | LCD capacitive touchscreen |
| Metadata Support | Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Controls | Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Connections
| Total Video Outputs | 2 |
|---|---|
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
| Analog Audio Outputs | 1 x 3.5mm headphone jack |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. |
| Viewfinder | 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. |
| USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
| Accessories | 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. |
| Computer Interface | 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
Audio
| Microphone | Integrated stereo microphone. |
|---|---|
| Built in Speaker | 1 x mono speaker. |
Standards
| SD Video Standards | None |
|---|---|
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit |
Media
| Media | 1 x Blackmagic Media Module. |
|---|---|
| Media Format | Blackmagic |
Supported Codecs
| Codecs | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
|---|
Control
| External Control | Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses. |
|---|
Streaming
| Direct Streaming | Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data. |
|---|
Network Management
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
|---|---|
| FTP | Download files from any drive attached to your camera using FTP. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| SMB | File sharing using SMB |
Storage Features
| Storage Type | 1 x Blackmagic Media Module 8TB |
|---|---|
| Storage Rates | Storage rates based on 24 frames per second. 17K - 17,520 x 8,040 Blackmagic RAW 3:1 - 1,700 MB/s Blackmagic RAW 8:1 - 638 MB/s Blackmagic RAW 12:1 - 425 MB/s Blackmagic RAW 18:1 - 284 MB/s Blackmagic RAW Q0 - 567 to 2,040 MB/s Blackmagic RAW Q1 - 464 to 1,134 MB/s Blackmagic RAW Q3 - 255 to 638 MB/s Blackmagic RAW Q5 - 170 to 510 MB/s 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s |
| Recording Formats | Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 12K resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. |
| Audio Channels | 2 channels. |
| Audio Recording | Uncompressed linear PCM 24-bit, 48kHz embedded audio in Blackmagic RAW. |
Power Requirements
| Power Supply | +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. Molex connector for rear battery plate. |
|---|---|
| Power Input | 1 x 8 pin Lemo compatible socket for external power or battery use. B-Mount battery plate. |
| Power Output | 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature | -20° to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
Warranty
| 1 Year Limited Manufacturer’s Warranty. |
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CINEURSAAD17K65B |
| Ean | 9338716009484 |
| Market segment | Professional |
| Product colour | Black |
| Essential qualities |
|
| Display diagonal | 12.7 cm (5") |
| Built-in display | Yes |
| Camcorder type | Handheld camcorder |
| 3D | No |
| Remotely operated | Yes |
| Maximum video resolution | 17520 x 8040 pixels |
| Built-in microphone | Yes |
| PictBridge | No |
| HDMI | No |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Headphone outputs | 1 |
| Weight | 3.96 kg |
| AC adapter included | Yes |
| Viewfinder type | Electronic |
| Maximum image resolution | 17520 x 8040 pixels |
| Camera type | Cinema |
| Sensor resolution | 17K |
| Sensor format | 65 mm |
| Lens mount | PL |
| Recording media | Blackmagic Media Module |
| Dynamic range (stops) | 16 |
| Built-in ND filters | No |
| Video output type | SDI |
| Configuration | Complete |
| Network | 10G Ethernet |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Near Field Communication (NFC) | No |
