Blackmagic Design VIDEOHUB 80X80 12G BNC

Blackmagic Videohub 80x80 12G

Blackmagic Videohub 80x80 12G is a zero latency video router that handles any combination of SD, HD and Ultra HD on the router at the same time. It has 80 12G-SDI inputs, each with an LED indicating an SDI signal, 80 12G-SDI outputs, redundant power and reference connections in a four rack unit design.

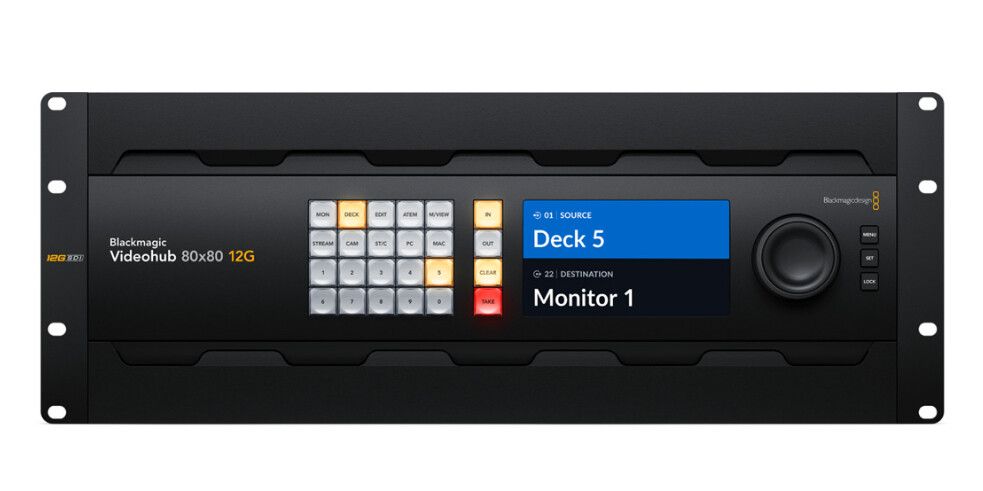

The built in front panel has an LCD that shows live video of the inputs before routing, along with routing labels and video standards. Routing is done by direct button selection or with the spin knob with electronic clutch. The router features SDI re-clocking and can be controlled over Ethernet with the free Videohub software for Mac and Windows or with Videohub Smart Control Pro and Videohub Master Control Pro hardware panels.

Key features

• 80 x 12G-SDI inputs and 80 x 12G-SDI outputs
• Supports SD, HD, 2K, Ultra HD and 4K DCI up to 2160p60 / 4Kp60, mixed on the same router
• Automatic input standard detection on each input
• SDI re-clocking on all SDI outputs
• Front panel with 5" LCD for live video, labels and menus, 24 buttons and spin knob
• Redundant internal power supplies; crosspoints restored at power on
• Ethernet control and Videohub SDK

Compatibility

• Videohub Smart Control Pro, Videohub Master Control Pro
• Blackmagic Videohub software for Mac and Windows

In the box

• Blackmagic Videohub 80x80 12G

Specifications

• SDI rates: DVB-ASI, 270 Mb, 1.5G, 3G, 6G, 12G
• Reference: Tri-Sync or Black Burst input, terminating loop output
• Interfaces: Ethernet 10/100/1000 BASE-T, USB-C
• SDI video sampling: YUV 4:2:2 and RGB 4:4:4
• Power supply: 2 x internal 100-240 V AC 50/60 Hz
• Power consumption: 92 W max
• Size: 4 rack units
• Operating temperature: 0 to 40 °C
