Blackmagic Design Videohub Master Control
GTIN: 9338716001815
Discontinued product
This product is no longer manufactured and is not available for purchase. The page stays online as a reference for specifications and compatibility.
Similar current model: Blackmagic Design Videohub Master Control Pro – Control panel with LCD for Videohub routers
1 RU control panel for Videohub routers with spin knob, direct button entry and LCD showing all routes, Ethernet and USB, powered via DC or Ethernet.

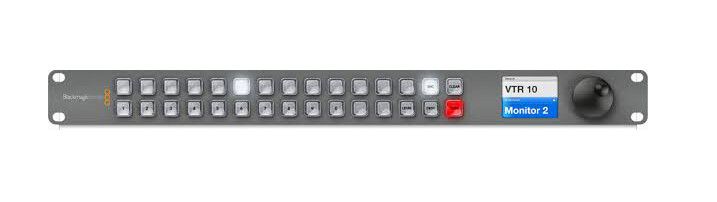

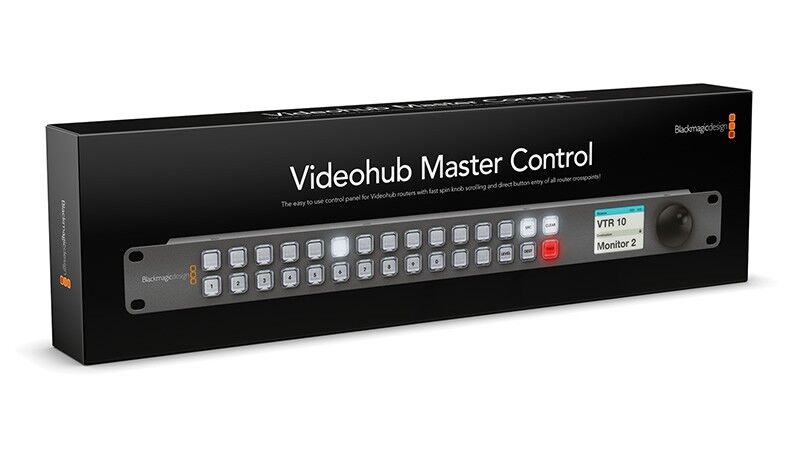

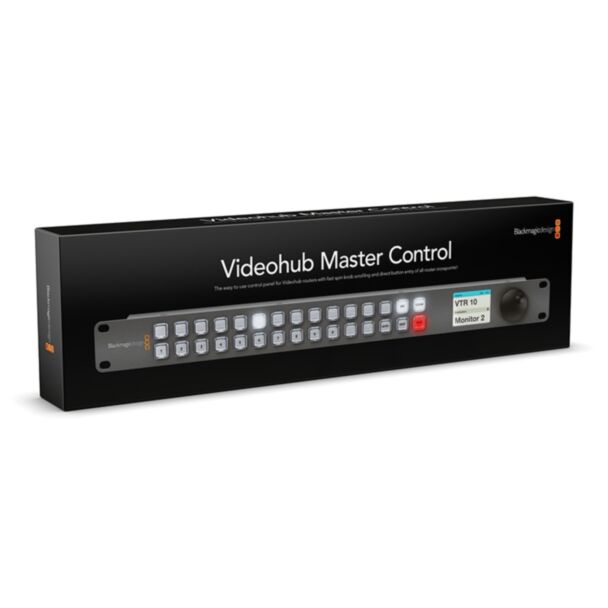

Blackmagic Videohub Master Control
Videohub Master Control gives fast access to the whole router: sources and destinations can be scrolled with the spin knob or selected by direct button entry, and all routes can be seen on the built-in LCD. The panel connects via Ethernet, has a USB port for updates and can be powered via DC or through the Ethernet connection.
Key features
- Spin knob and direct button entry for sources and destinations
- LCD showing all routes
- 2 Ethernet RJ-45 ports and 1 USB port
- Powered via DC (power supply included) or via Ethernet
- Firmware upgradeable
Specifications
- Format: 1 RU rack
- Dimensions: 482 x 44 mm (W x H)
- Weight: 827 g
- Operating temperature: 0-40 °C
- Colour: grey
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | VHUB/WMSTRCRL |
| Ean | 9338716001815 |
| Modified on | 08-07-2015 |
| Warranty | 12 Months Limited Warranty |
| Product title | Blackmagic Design Videohub Master Control Built-in display |
| Long Product Name | Videohub Master Control, RJ-45, USB 2.0, LCD display, 1U, 482x40x44 mm |
| Product specifications | FeaturesFirmware upgradeable Yes DesignHousing colour Grey Rack mounting Yes Rack capacity 1U Control type Buttons, Rotary DisplayBuilt-in display* Yes Display type LCD Ports & interfacesUSB ports quantity 1 Ethernet LAN (RJ-45) ports 2 DC-in jack Yes PowerPower supply location External Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 482 mm Depth 40 mm Height 44 mm Weight 827 g Packaging contentAC adapter included Yes |
