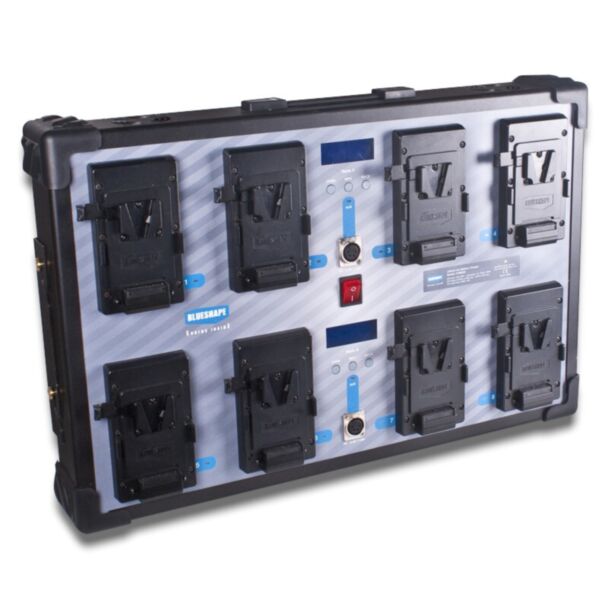

Blueshape CVS8XW 8-Channel Wall-Mount V-Mount Charger

The Blueshape CVS8XW is designed for V-Lock Li-ion batteries and charges up to eight of them fully simultaneously. Two LCD displays, one for each group of four batteries, show real-time information such as state of charge, time to full charge and status.

A metal bracket allows rugged and simple wall mounting indoors, for example in a production vehicle, and the charger can be removed easily when needed. The redundant design uses four power supplies and includes IPCS and CTP protection for batteries and charger. Two auxiliary DC outputs on 4-pin XLR provide 13.8 V up to 110 W, and a USB connection lets one computer monitor up to four chargers with the BSCVMon software supplied.

Key features

• Charges up to 8 V-Mount Li-ion batteries simultaneously
• Two LCD displays with real-time battery information
• Metal wall-mount bracket, also for production vehicles
• Redundant design with 4 power supplies, IPCS and CTP protection
• 2 x AUX DC outputs 13.8 V, 110 W max (4-pin XLR)
• USB monitoring of up to 4 chargers with BSCVMon software

Specifications

• Input: 100-240 V AC, 47-63 Hz
• Outputs: 8 x 16.8 V DC, 4.8 A
• Charging current: 4.8 A per channel with 4 batteries, 3.0 A with more than 4
• AUX: 2 x 13.8 V DC, 110 W max
• Dimensions: 620 x 410 x 110 mm
• Weight: 9.7 kg
