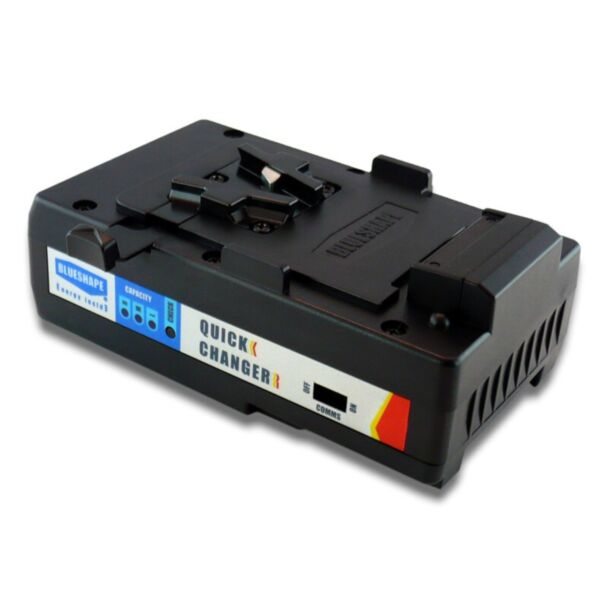

Blueshape MVQUICK – hot-swap system for V-Mount batteries

- Nominal Voltage: 14.8V
- Voltage range: 10.8V ~ 16.8V
- Nominal Capacity: 1.5Ah, 21Wh
- Max. discharge current: 10A
- About up to 10~15 minutes runtime when used standalone as an UPS backup battery
- Installable on any V-Lock enabled device
- Self charging through the installed battery, can be charged also on any V-Lock chargers
- Allow data communication from battery to camera
- Size: 142 x 83 x 50mm (5.59" x 3.27" x 1.97")
- Weight: 0.49Kg (1.08lbs)
- NEW: enhanced contact protection for safer air transport

MVQUICK is a hot swap system to be installed as a battery interface between the camera (or any other V-lock compatible device) and the battery pack. The main purpose is to allow camera battery replacement without any power interruption through an automatic detection of the battery removal.
Additionally, MVQUICK provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements.

High-load cell technology permits discharging of up to 10A when used as a stand alone power source.

Automatically recovers a part of the energy spent during the hot swap period upon reinstatement of a fresh battery, and due to this features allows several hot swap operationswithoutn needing any further charge.
If used as UPS device, it can be charged normally on standard Vlock chargers.

MVQUICK is designed to work perfectly with cameras using BLUESHAPE battery communication protocol.
NEW: Enhanced contact protection for safer air transport
We care and strongly respect the IATA requirements when it comes to transporting batteries. Towards this, we have adopted high quality individual packaging for every individual battery.

A recent addition is the CONTACT COVER (shown here) that we started including on every V-mount battery that comes out of our production as the ultimate protection against short circuit of the contacts.
This cover does exactly what it says and makes it virtually impossible for a short between the terminals to occur during transport. This is our latest enhancement in our list of safety features that give maximum protection, especially important during air transport.

We request our clients to store the original boxes and also the CONTACT COVERS so as to reuse them if our batteries need to be transported in any aircraft.
