SKAARHOJ Air Fly for TriCaster live switching controller

SKAARHOJ Air Fly for TriCaster

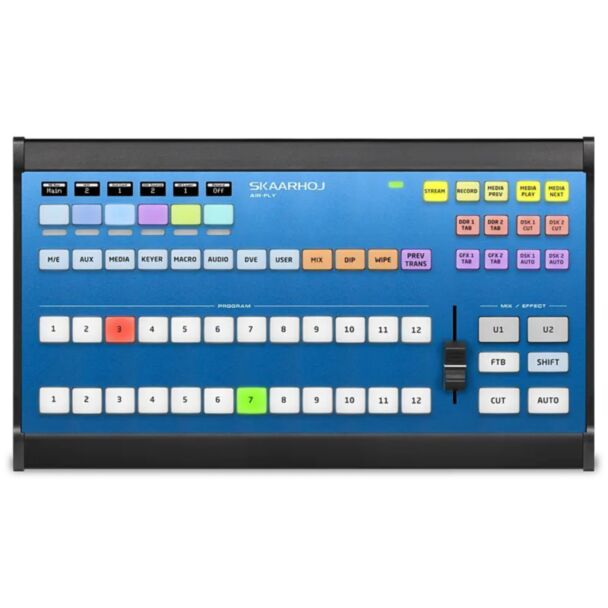

SKAARHOJ Air Fly for TriCaster is a cost-effective live switching controller with key labels printed using TriCaster-specific naming. It is the smallest SKAARHOJ panel with dedicated Program and Preview rows and a transition fader, plus clearly labeled menu and ancillary buttons, so even advanced menu structures are quick to navigate.

Six 4-way buttons with OLED screens on the top row show which parameter or function is assigned; each can carry 4 different functions or act as a navigation button. All buttons are LED-backlit in any selected color. Like other SKAARHOJ panels, Air Fly can also control other supported devices from the same surface, configured in the web-based Reactor GUI, and can be combined magnetically with other SKAARHOJ controllers into a larger surface.

Key features

• 12 program and 12 preview buttons
• 12 menu selection buttons
• 6 programmable 4-way buttons with OLED screens
• Low profile, durable transition fader
• Keyer section with all essentials
• Shift and user keys in the large ME section
• All buttons backlit with RGB LEDs, color and dimming assignable; 6 multilevel LEDs for metering or extra labeling
• Can also control other SKAARHOJ-supported devices from the same surface
• User customization with the Reactor web UI
• 1G Ethernet with Power over Ethernet
• Designed and made in Denmark

Compatibility

• Vizrt TriCaster
• Other devices listed at devices.skaarhoj.com

Notes

• This version has fixed key labels printed for TriCaster. Air Fly is also available with labels for the other two systems (ATEM, vMix, TriCaster); the hardware is the same.
• There is space for labeling tape to name your channels.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU, GB, US or AU plug depending on the shipping country)
• Getting Started Guide

Specifications

• Buttons: 53 elastomer buttons, 2 elastomer 4-way buttons, 6 elastomer 4-way buttons with display
• Fader: 45 mm slider
• OLED tiles: 6 x 64x32 pixels
• Other: 6 x 3-step LED bars, 1 LED
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, center positive) or PoE
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Software platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1376 g
• Dimensions (W x D, from technical drawing): 310 x 178 mm
• Country of origin: Denmark
