SKAARHOJ Air Fly Pro live switching controller with PTZ section

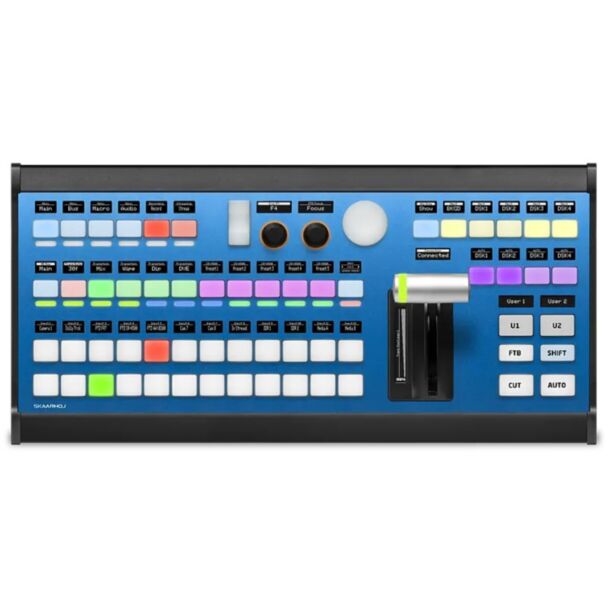

SKAARHOJ Air Fly Pro

SKAARHOJ Air Fly Pro is SKAARHOJ's most popular live switching controller: a 12-channel Program/Preview row with dedicated silicone buttons, an advanced transition section with SKAARHOJ Hall Effect T-bar and LED ring, and freely assignable buttons for macros, aux buses and menu navigation.

Its PTZ section with elastomer joystick, zoom rocker and two backlit encoders is the same as the SKAARHOJ PTZ Wiz, so a single operator can adjust framing and shading or store and recall presets on any SKAARHOJ-supported PTZ camera. Compact and durable, it suits studio and mobile setups, from houses of worship and corporate events to large live productions, and can be combined with other SKAARHOJ panels for more channels.

Key features

• 12 program and 12 preview buttons
• 12 AUX/sends/macro silicone buttons
• 12 miscellaneous buttons
• SKAARHOJ Hall Effect T-bar with OLED display and LED ring
• 4 assignable transition/quick-shot buttons
• 4 dedicated transition buttons
• 2 user buttons
• PTZ section with elastomer joystick, zoom rocker and 2 backlit encoders
• Multiple OLED displays for labels and feedback
• Universal control of multiple third-party devices
• User customization with the Reactor web UI
• 1G Ethernet with Power over Ethernet
• Designed and made in Denmark

Compatibility

• Blackmagic Design ATEM
• vMix
• TriCaster
• SKAARHOJ-supported PTZ cameras
• Other devices listed at devices.skaarhoj.com

Notes

• Also available as Air Fly Pro with NKK buttons (NKK sculptured cap Program/Preview buttons).
• XPoint 48 is the matching expansion panel with 48 additional programmable buttons (sold separately).
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU, GB, US or AU plug depending on the shipping country)
• Getting Started Guide

Specifications

• Buttons: 18 elastomer 4-way buttons, 40 elastomer 4-way buttons with display
• Encoders: 2
• Analog controls: Hall Effect T-bar with RGB, elastomer joystick (left-right, up-down), elastomer zoom rocker
• OLED tiles: 28 x 64x32 pixels, 12 x 64x32 pixels gray, 1 x 256x32 pixels gray, 5 x 112x32 pixels
• Other: 18 x 3-step LED bars, 2 OLED display tiles
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, center positive) or PoE
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Software platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1878 g
• Dimensions (W x D, from technical drawing): 368 x 178 mm
• Country of origin: Denmark
