SKAARHOJ ETH-GPI Link Dual networked GPIO interface 16 in / 16 out
SKAARHOJ ETH-GPI Link Dual: networked GPIO bridge with 16 opto-isolated inputs and 16 relay outputs on two DB25 connectors, PoE powered, for tally, routing and control.
SKAARHOJ ETH-GPI Link Dual

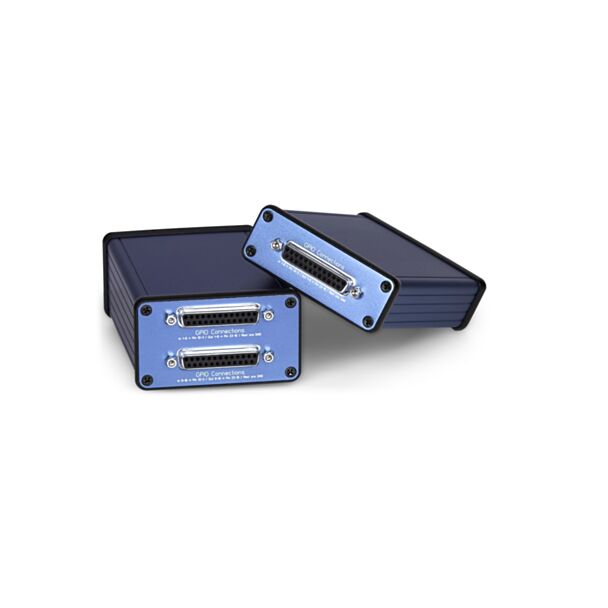

A must-have in any control room and OB van. The ETH-GPI Link Dual connects and controls a wide range of broadcast devices through 16 general purpose inputs and 16 general purpose outputs: signal routing, tally, switching and utility functions, with integration into systems such as Blackmagic ATEM switchers, AJA KUMO and Grass Valley routers, RCP controllers and tally lamps. It can also be used to extend and distribute GPIO over a standard LAN.
It can route signals from Panasonic AW-RP controllers to ATEM switchers, manage inputs and outputs on Videohub routers, give SKAARHOJ IP panels bi-directional communication with non-Ethernet devices, convert legacy analog GPI signals to and from Ethernet, or interface devices in different locations. The Dual version has two DB25 ports, double the channels of the standard ETH-GPI Link.
Key features
- 16 GPI and 16 GPO, fully isolated (16 opto-isolated inputs, 16 relay outputs)
- Two DB25 connectors
- Works with open collector and relay outputs
- Raw Panel protocol for easy connection to Blue Pill Inside devices
- Configuration via UniSketch web interface
- Micro USB port for configuration and updates
- 100 Mbit Ethernet with PoE
- Designed and made in Denmark
Compatibility
- Blackmagic ATEM switchers and Videohub routers
- AJA KUMO and Grass Valley routers
- RCP controllers (e.g. Panasonic AW-RP) and tally lamps
- SKAARHOJ Blue Pill Inside devices via Raw Panel
Notes
- SKAARHOJ GPI inputs accept open collector and relay outputs (pulled to GND).
In the box
- ETH-GPI Link Dual
- 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
- Micro USB cable
- Getting Started Guide
Specifications
- GPIO: 16 + 16 channels (16 opto-isolated inputs / 16 relay outputs) on 2 x DB25
- Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
- Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
- Service port: Micro USB for firmware updates and manual IP setting
- Platform: UniSketch (Raw Panel server, legacy device cores)
- Dimensions (technical drawing): 126 x 81 x 48 mm
- Weight: 288 g
- Recommended (not included): Cat 6 S/FTP Ethernet cable or better
| Product Condition | New |
|---|---|
| Manufacturer | Skaarhoj |
| manufacturer code | ETH-GPI-LINK-DUAL-V1 |
