SKAARHOJ ETH-GPI Link networked GPIO interface 8 in / 8 out

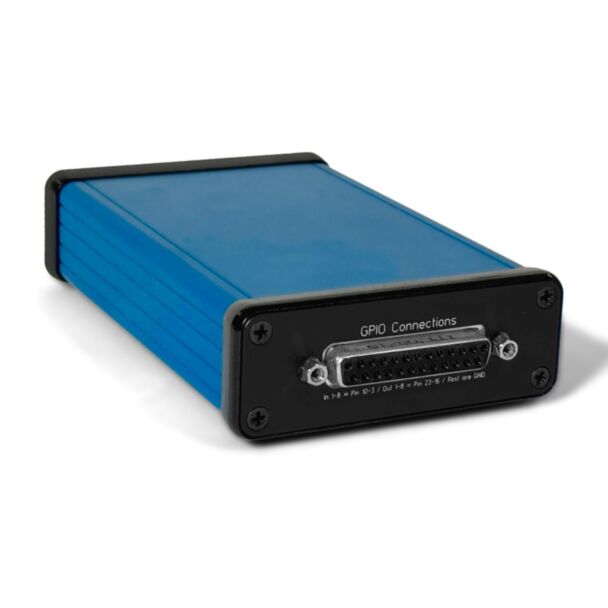

SKAARHOJ ETH-GPI Link

A must-have in any control room and OB van. The ETH-GPI Link connects and controls a wide range of broadcast devices through 8 general purpose inputs and 8 general purpose outputs: signal routing, tally, switching and utility functions, with integration into systems such as Blackmagic ATEM switchers, AJA KUMO and Grass Valley routers, RCP controllers and tally lamps. It can also be used to extend and distribute GPIO over a standard LAN.

It can route signals from Panasonic AW-RP controllers to ATEM switchers, manage inputs and outputs on Videohub routers, give SKAARHOJ IP panels bi-directional communication with non-Ethernet devices, convert legacy analog GPI signals to and from Ethernet, or interface devices in different locations. The standard version has a single DB25 port with 16 contact closures: 8 inputs and 8 outputs.

Key features

• 8 GPI and 8 GPO, fully isolated (8 opto-isolated inputs, 8 relay outputs)
• Single DB25 connector
• Works with open collector and relay outputs
• Raw Panel protocol for easy connection to Blue Pill Inside devices
• Configuration via UniSketch web interface
• Micro USB port for configuration and updates
• 100 Mbit Ethernet with PoE
• Designed and made in Denmark

Compatibility

• Blackmagic ATEM switchers and Videohub routers
• AJA KUMO and Grass Valley routers
• RCP controllers (e.g. Panasonic AW-RP) and tally lamps
• SKAARHOJ Blue Pill Inside devices via Raw Panel

Notes

• SKAARHOJ GPI inputs accept open collector and relay outputs (pulled to GND). The default HD15 tally connector of the TriCaster TC1 does not provide a directly working signal: the 5 V potential must be converted to GND.

In the box

• ETH-GPI Link
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Micro USB cable
• Getting Started Guide

Specifications

• GPIO: 8 + 8 channels (8 opto-isolated inputs / 8 relay outputs) on DB25
• Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for firmware updates and manual IP setting
• Platform: UniSketch (Raw Panel server, legacy device cores)
• Dimensions (technical drawing): 126 x 81 x 32 mm
• Weight: 216 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
