SKAARHOJ ETH-LANC Link Ethernet to LANC camera control interface

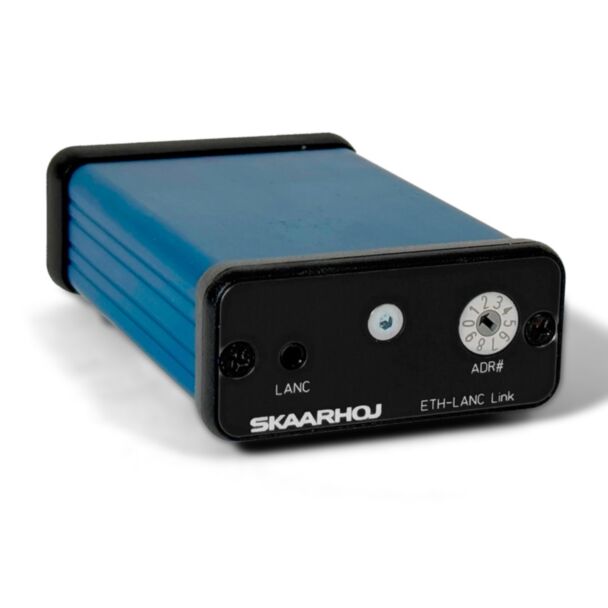

SKAARHOJ ETH-LANC Link

The ETH-LANC Link is an Ethernet to LANC protocol converter for straightforward control of LANC compatible cameras. It performs basic camera functions such as zoom, iris control and record start/stop, receiving commands via UDP from a SKAARHOJ device core.

Despite the inherent limitations of LANC, it enables remote camera operation where direct control would be difficult because of distance or accessibility. Its compact design makes it easy to add to existing setups.

Key features

• LANC camera control over Ethernet
• Basic operations: zoom, iris, record start/stop
• UDP communication from SKAARHOJ device cores
• Compatible with SKAARHOJ shading controllers
• Compact design
• 100 Mbit Ethernet with PoE
• Designed and made in Denmark

Compatibility

• LANC compatible cameras
• SKAARHOJ shading controllers and device cores

Notes

• Available functions are limited to those offered by the LANC protocol of the camera.

In the box

• ETH-LANC Link
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Micro USB cable
• Getting Started Guide

Specifications

• Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for firmware updates and manual IP setting
• Camera connection: LANC
• Platform: special firmware
• Dimensions (technical drawing): 86 x 57 x 26 mm
• Weight: 106 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
