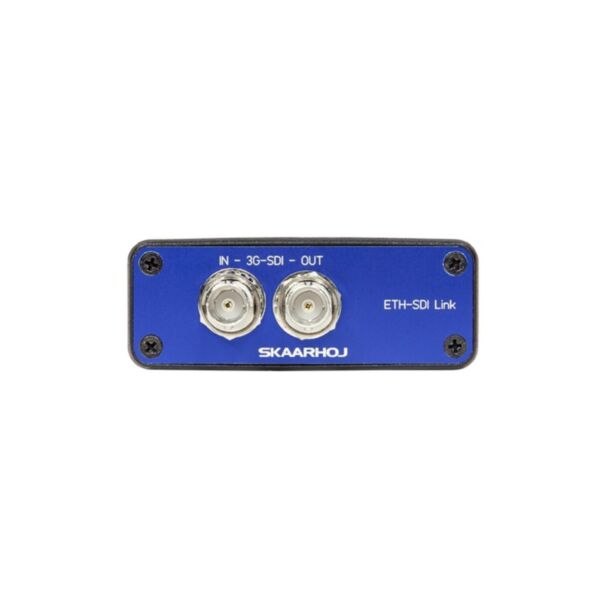

SKAARHOJ ETH-SDI Link Ethernet to SDI camera control bridge

SKAARHOJ ETH-SDI Link

The SKAARHOJ ETH-SDI Link bridges Ethernet-based control systems and SDI-embedded control. It receives camera control information over Ethernet and forwards it to its SDI output, so operators can control Blackmagic Design cameras with SKAARHOJ controllers without using an ATEM switcher.

It can merge network data from multiple remote control panels (RCPs) onto a single SDI wire, simplifying the control signal design, and it allows real-time control of cameras in remote locations where running SDI cables is impractical, for example a Blackmagic URSA Broadcast G2 controlled from SKAARHOJ RCP panels or the Blackmagic Design Camera Control Panel.

Key features

• Receives camera control information over Ethernet
• Forwards control signals to the SDI output
• Merges network data from multiple RCPs onto a single SDI wire
• SDI input for return video
• Supports a wide range of camera control commands
• Ethernet with PoE
• Durable build for professional broadcast environments
• Designed and made in Denmark

Compatibility

• Blackmagic Design cameras with SDI camera control (e.g. URSA Broadcast G2)
• SKAARHOJ RCP panels and Blackmagic Design Camera Control Panel

In the box

• ETH-SDI Link
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Micro USB cable
• Getting Started Guide

Specifications

• Video: 3G-SDI in/out
• Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for firmware updates and manual IP setting
• Platform: special firmware
• Dimensions (technical drawing): 126 x 81 x 32 mm
• Weight: 256 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
