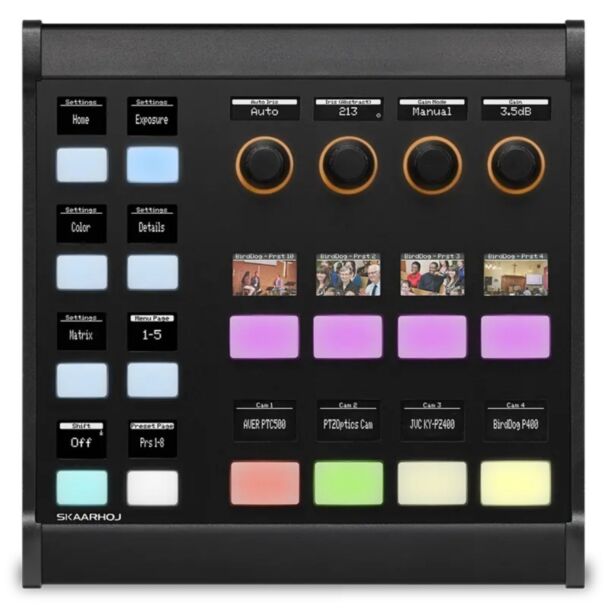

SKAARHOJ Frame Shot Plus Black controller with colour displays

SKAARHOJ Frame Shot Plus - Black

SKAARHOJ Frame Shot Plus is a customisable universal controller that combines colour displays, four-way buttons, encoders and classic monochrome OLEDs. It is designed as an addition to SKAARHOJ PTZ controllers (especially PTZ View), vision mixing controllers and Mega Panel systems. The colour screens can show a preview of a frame grabbed while storing a preset, or custom colour labels and feedback.

Camera presets and macros can be accessed, recalled and adjusted quickly, with clear visual feedback of which preset or macro is active; the frame snapshot is a fast alternative to text labels for identifying a camera preset. Every button and encoder can be configured individually, for switching cameras, triggering macros and salvos, selecting or shading cameras or controlling other devices, and the panel integrates with the rest of the SKAARHOJ ecosystem.

Key features

• 8 fully customisable buttons with dynamic colour OLED screens
• 8 four-way buttons with monochrome OLED screens
• 4 rotary encoders
• Sidecar for SKAARHOJ PTZ controllers, especially PTZ View
• Power over Ethernet (PoE) for simple setup
• Robust design for professional environments
• Designed and made in Denmark

Compatibility

• SKAARHOJ PTZ controllers such as PTZ View, PTZ Pro and PTZ Extreme
• SKAARHOJ switching controllers such as Air Fly Pro
• SKAARHOJ Mega Panel systems

Notes

• Black version of Frame Shot Plus (standard chassis, black front); controls, connections and functions are the same as the blue version.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Buttons: 16 x elastomer four-way button (8 with colour OLED 96x64 pixel, 8 with monochrome OLED)
• Encoders: 4
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1000 g
• Dimensions (technical drawing): 176 mm wide, 178 mm deep, height 48 to 74 mm
• Country of origin: Denmark
