SKAARHOJ Frame Shot Pro Black presets and macros controller

SKAARHOJ Frame Shot Pro - Black

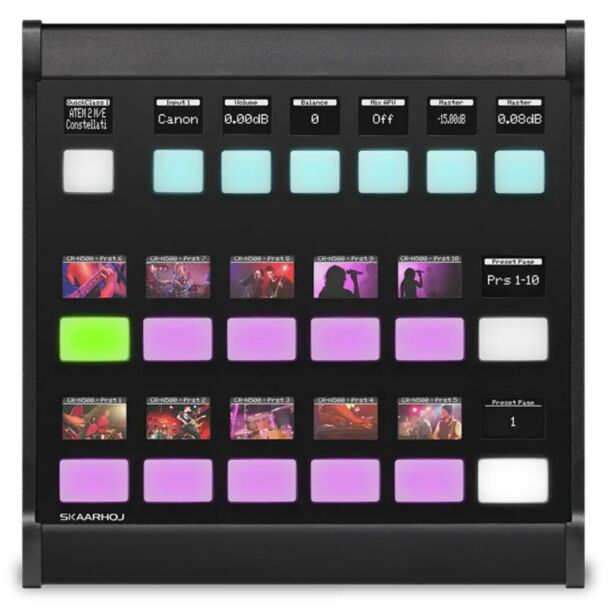

SKAARHOJ Frame Shot Pro is a customisable presets and macros controller with 19 four-way buttons, each with a dynamic OLED screen: 12 colour and 7 monochrome. It is designed for broadcast, live production and AV systems, as a sidecar for SKAARHOJ PTZ controllers, vision mixing controllers and Mega Panel. The colour screens can show a preview of a frame grabbed while storing a preset, or custom colour labels and feedback.

Camera presets and macros can be accessed, recalled and adjusted quickly, with clear visual feedback of which preset or macro is active; the frame snapshot is a fast alternative to text labels. Every button can be configured individually, for switching cameras, triggering macros and salvos or controlling other devices, and the panel works as an expansion module for PTZ View, PTZ Pro, PTZ Extreme and switching controllers such as Air Fly Pro.

Key features

• 19 fully customisable four-way buttons with dynamic OLED screens
• 12 colour and 7 monochrome screens
• Frame snapshot previews for visual preset recall
• Expansion sidecar for SKAARHOJ PTZ and switching controllers
• Power over Ethernet (PoE) for simple setup
• Robust design for professional environments
• Designed and made in Denmark

Compatibility

• SKAARHOJ PTZ controllers such as PTZ View, PTZ Pro and PTZ Extreme
• SKAARHOJ switching controllers such as Air Fly Pro
• SKAARHOJ Mega Panel systems

Notes

• Black version of Frame Shot Pro (standard chassis, black front); controls, connections and functions are the same as the blue version.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Buttons: 19 x elastomer four-way button (12 with colour OLED 96x64 pixel, 7 with monochrome OLED 64x48 pixel)
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1000 g
• Dimensions (technical drawing): 176 mm wide, 178 mm deep, height 46 to 72 mm
• Country of origin: Denmark
