SKAARHOJ RCP Mini Black compact camera shading panel
Compact 68 mm wide camera shading panel: six units fit in the space of four standard RCPs; joystick with OLED, 6 encoders with OLEDs, four-way buttons; PoE.

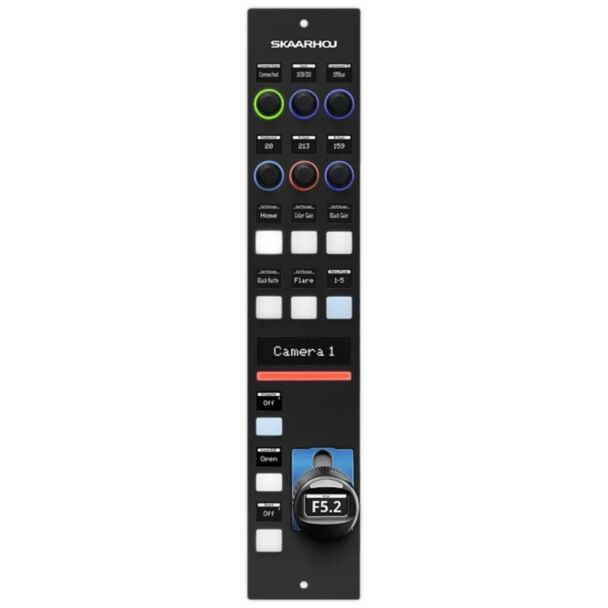

SKAARHOJ RCP Mini - Black
SKAARHOJ RCP Mini is a camera shading panel for installations with limited space. At 68 mm wide, six units fit in the space of four standard RCPs, which makes it suitable for modern OB trucks.
The proprietary RCP handle has an OLED display, a pedestal encoder ring, an LED and a push function, so full iris and master black control is kept. Each of the 6 encoders has its own OLED display, and four-way buttons give access to shortcuts and camera settings. The RCP Mini works with all cameras that can be controlled via Reactor and Blue Pill, including Sony, Panasonic and more, and can be customised in the Reactor web UI.
Key features
- 68 mm wide: six units in the space of four standard RCPs
- Joystick for iris and master black pedestal, with OLED display, LED and push function
- 6 encoders, each with a dedicated OLED display
- Four-way buttons for shortcuts and camera settings
- Universal control of multiple third-party devices
- User customisation with the Reactor web UI
- 1G Ethernet with PoE
- Designed and made in Denmark
Compatibility
- Cameras controllable via Reactor and Blue Pill, including Sony, Panasonic and others
Notes
- Black version, the version of RCP Mini listed by SKAARHOJ.
- Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.
In the box
- Controller
- 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
- Getting Started Guide
Specifications
- Width: 68 mm
- Iris control: SKAARHOJ joystick handle with display, LED, pedestal ring and push function
- Buttons: 9 x elastomer four-way button, joystick top button
- Encoders: 6 x encoder, joystick encoder
- GPIO: 1 opto-isolated input, 1 relay output
- Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
- Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
- Service port: Micro USB for setting a manual IP address
- Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
- Weight: 1100 g
- Country of origin: Denmark
| Product Condition | New |
|---|---|
| Manufacturer | Skaarhoj |
| manufacturer code | RCP-MINI-V1B-BK |
