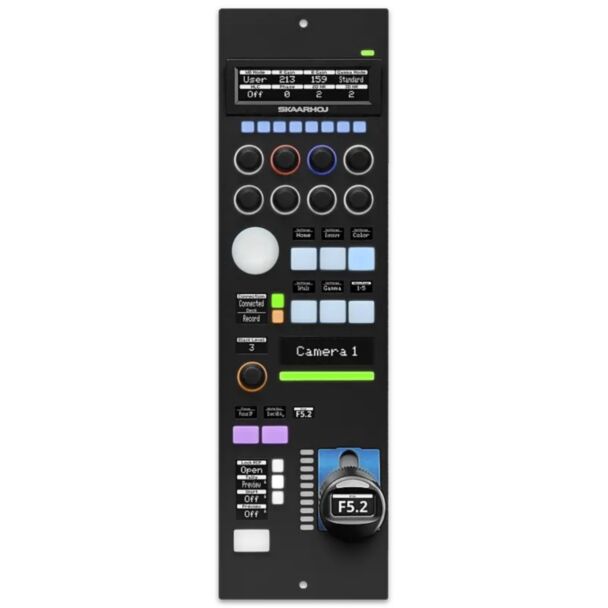

SKAARHOJ RCP Pro Black universal camera shading panel

SKAARHOJ RCP Pro - Black

SKAARHOJ RCP Pro is the most advanced SKAARHOJ camera shading panel, for all types of cameras including cinema, PTZ, studio and miniature models. Its joystick has a built-in OLED screen showing the current iris value and a tally indicator: pressing it brings the camera feed to your monitor, turning the pedestal adjusts master black, and the movement tension is user-adjustable. A large angled display and fully customisable knobs and buttons complete the panel.

The RCP Pro gives control of iris, master black, shutter, ISO, gain, white balance, tint and RGB values. It can be dedicated to a single camera, as in OB trucks, or manage up to 8 cameras with its 8 camera selector buttons. A pressure-sensitive D-pad allows quick positioning of PTZ cameras.

With the built-in Blue Pill server it supports different camera brands, such as ARRI, RED, Sony, Panasonic, Canon and Blackmagic Design, as well as cinema tools such as colour boxes, and integrates into live production systems with features such as tally forwarding and routing triggers. Default configurations are ready for every supported device, and every control can be customised in the Reactor web UI.

Key features

• Joystick for iris and master black pedestal, with OLED display, tally LED and push function
• Raised, angled display for monitoring values
• 8 buttons for camera selection and presets
• 8 encoders for shading and menu cycling
• Pressure-sensitive joystick pad for PTZ cameras
• Four-way buttons for shortcuts and camera settings
• Universal control of multiple third-party devices
• Industry-standard RCP form factor
• User customisation with the Reactor web UI
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• Cinema, PTZ, studio and miniature cameras from ARRI, RED, Sony, Panasonic, Canon, Blackmagic Design and others supported by Blue Pill
• Cinema tools such as colour boxes

Notes

• Black version, the version of RCP Pro listed by SKAARHOJ.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Iris control: SKAARHOJ joystick handle with display, LED, pedestal ring and push function
• Buttons: 13 x elastomer button, 8 x elastomer four-way button with display, 1 x elastomer four-way button, joystick top button
• Encoders: 8 x encoder with LED ring, 1 x encoder, joystick encoder
• Joystick pad (left-right, up-down) for PTZ
• GPIO: 3 channels (3 opto-isolated inputs, 3 relay outputs)
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1289 g
• Country of origin: Denmark
