SKAARHOJ RCPv2 camera shading panel with joystick and SDI

SKAARHOJ RCPv2 Joystick with SDI

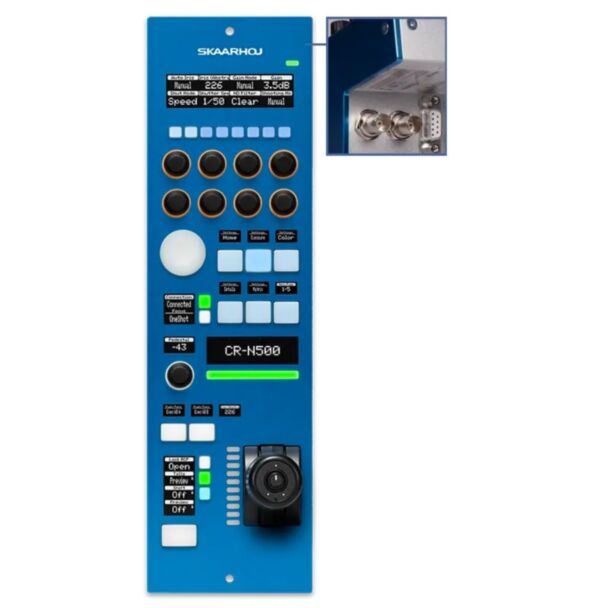

SKAARHOJ RCPv2 Joystick w/SDI is a universal camera remote control panel with a joystick fader, potentiometer pedestal ring, push-button top and 8 LED-backlit encoders. In addition to the standard RCPv2 Joystick, it has a 3G-SDI connection on the back for direct shading of Blackmagic Design cameras through their video return feed.

The large OLED display, segmented for each encoder, works together with four-way buttons for fast navigation, and PTZ, zoom and focus control can be assigned to the joystick pad. A single-channel GPIO (one opto-isolated input and one relay output) on a DB-9 connector makes it easy to drop into existing systems. With the Blue Pill platform it supports a wide range of cameras, including Sony, Panasonic, Canon, ARRI, RED, Dream Chip and many more, and every control can be customised in the Reactor web UI.

Key features

• 3G-SDI in/out for shading Blackmagic Design cameras via the video return feed
• Iris joystick with potentiometer pedestal ring and push-button top
• 8 LED-backlit encoders for camera settings
• Large segmented OLED display, one section per encoder
• Four-way buttons for navigation
• Joystick pad assignable to PTZ, zoom and focus
• Single-channel GPIO on DB-9 connector
• Universal control of third-party cameras, customisable with the Reactor web UI
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• Blackmagic Design cameras via 3G-SDI
• Cameras supported via Blue Pill, including Sony, Panasonic, Canon, ARRI, RED, Dream Chip and many more

Notes

• Same as the RCPv2 Joystick with the addition of 3G-SDI in/out for Blackmagic Design cameras.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Iris control: joystick fader with pedestal ring and push button
• Buttons: 8 x elastomer four-way button with display, 1 x elastomer four-way button, 13 x elastomer button
• Encoders: 8 x encoder with LED ring, 1 x encoder
• Joystick pad (left-right, up-down) for PTZ, zoom and focus
• OLED displays: 8 x 64x32 pixel (gray), 18 x 64x32 pixel, 1 x 128x32 pixel; 10-step LED bar
• GPIO: 1 channel (1 opto-isolated input, 1 relay output)
• Video: 3G-SDI in/out for Blackmagic Design cameras
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1260 g
• Country of origin: Denmark
