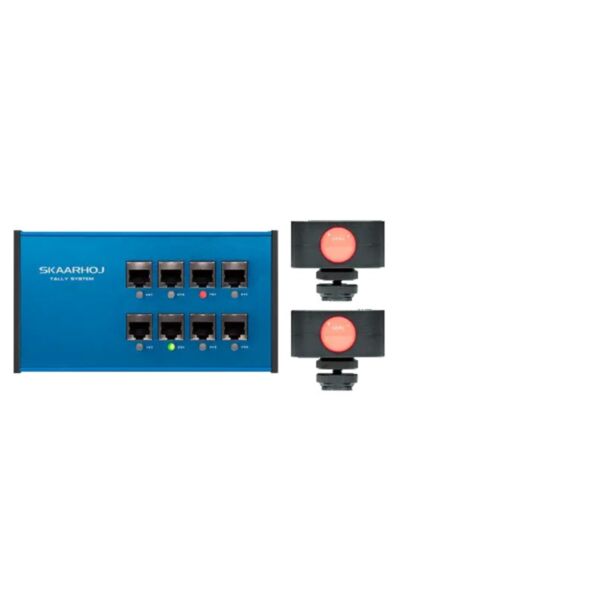

SKAARHOJ Tally Box + 2 Tally Lights tally system bundle

SKAARHOJ Tally Box + 2 x Tally Light Bundle

Ready-made bundle with one SKAARHOJ Tally Box and 2 SKAARHOJ Tally Lights. The SKAARHOJ Tally Box is a simple yet powerful external tally lamp system for broadcast, live production and AV. It gives clear visual identification of the active cameras or speakers and supports universal and proprietary Ethernet tally protocols such as TSL, Blackmagic, Sony, TriCaster and more. Up to 8 SKAARHOJ Tally Lights can be wired to the Ethernet-based Tally Box, each over a single Cat cable that carries both signal and power, in star or daisy-chain topology (up to 3 lamps per chain).

Setup is straightforward: connect the Tally Box to the same local network as the production system, plug in the lamps, specify the IP address and you are ready. It is ideal for mixed-brand systems that use different protocols, or when the tally lights built into cameras are too small or hidden, for example by a teleprompter. Older systems without IP tally can be connected through the SKAARHOJ ETH-GPI Link, which converts GPIO contacts to Ethernet. The lamps can also be triggered manually from SKAARHOJ hardware buttons, e.g. to mark the active speaker in a meeting.

Key features

• Compatible with universal and proprietary Ethernet tally protocols such as TSL, Blackmagic, Sony and TriCaster
• Up to 8 SKAARHOJ Tally Lights per Tally Box
• Single Cat cable connection between Tally Box and each Tally Light (signal and power)
• Star wiring or daisy chain of up to 3 lamps
• Red and green tally control
• Tally Box powered via PoE or 12 V DC
• Durable build for professional broadcast environments
• Designed and made in Denmark
• Tally Light: large red light on the viewer side, smaller red and green light on the operator side for program and preview; mounts via cold shoe or 1/4" screw

Notes

• Bundle of 1 Tally Box and 2 Tally Lights; further lamps (up to 8 per Tally Box) or additional Tally Boxes can be added later.
• Cat 5 cables for connecting the Tally Lights to the Tally Box are not included.

In the box

• 1 x Tally Box
• 2 x Tally Light
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Micro USB cable
• Getting Started Guide

Specifications

• Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for firmware updates and manual IP setting
• Tally Light outputs: 8, for Cat cables
• Tally Box weight: 390 g
• Tally Box footprint (technical drawing): 166 x 94 mm
• Platform: UniSketch (Raw Panel server, legacy device cores)
• Tally Light weight: 96 g each, powered via the Cat cable
