SKAARHOJ Tally Light

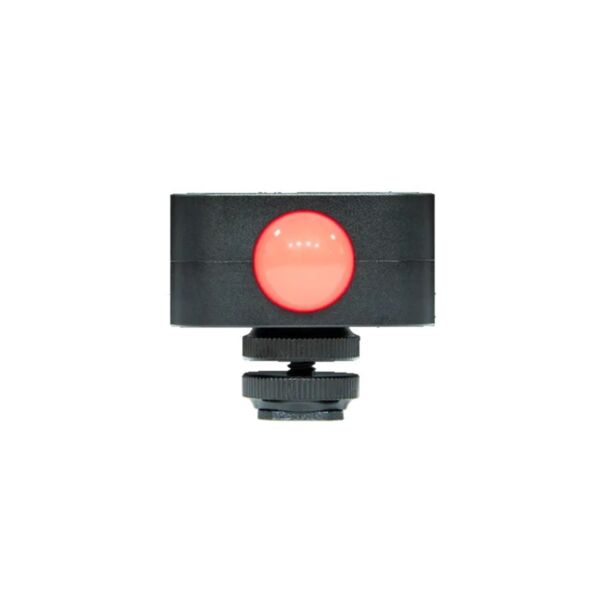

The SKAARHOJ Tally Light gives clear visual cues to both camera operators and presenters. Its dual LEDs show program and preview to the operator and a distinct program signal to the presenter: a large red light on the viewer side for on-air identification and a smaller red and green light on the operator side.

Two switches let the operator turn the main LED on or off and adjust the brightness of the operator LED. The lamp connects to the SKAARHOJ Tally Box over a single Cat cable that carries signal and power; up to 8 lamps can be connected to one Tally Box, directly or in daisy chain (up to 3 lamps per chain). It mounts on virtually any camera via cold shoe or 1/4" screw.

Key features

• Dual LEDs: program and preview for the operator, program for the presenter
• Large red light on the viewer side, smaller red and green light on the operator side
• On/off switch for the main LED and brightness adjustment for the operator LED
• Single Cat cable connection to the Tally Box (signal and power)
• Up to 8 lamps per Tally Box, direct or daisy-chained (up to 3 per chain)
• Cold shoe or 1/4" screw mounting
• Designed and made in Denmark

Compatibility

• SKAARHOJ Tally Box (ETH-Tally Link)

Notes

• Requires a SKAARHOJ Tally Box (sold separately). Cat 5 cable for connection to the Tally Box not included.

In the box

• Tally Light

Specifications

• Connection: basic signals over Cat cable (no networking)
• Power: via the Cat cable from the Tally Box
• Weight: 96 g
