SKAARHOJ TCP Link for ATEM TCP control interface for ATEM switchers

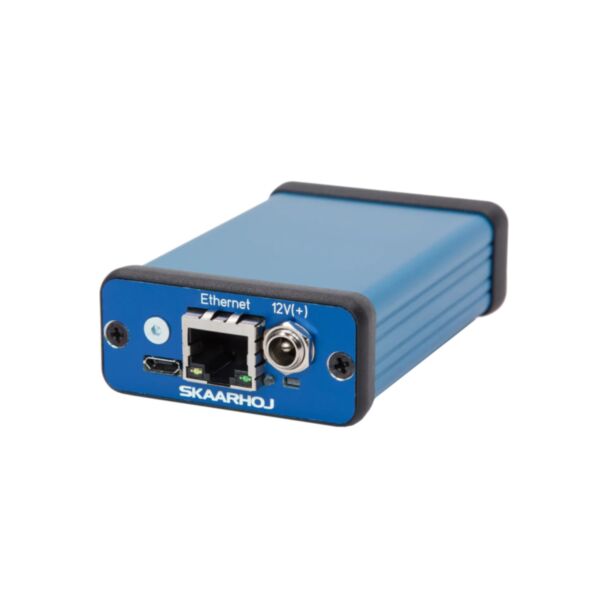

SKAARHOJ TCP Link for ATEM

The SKAARHOJ TCP Link for ATEM provides a TCP interface for Blackmagic Design ATEM switchers, so they can be easily integrated into AV systems. It reports switcher state changes and forwards commands to the switcher, giving bi-directional control over most ATEM parameters with simple TCP commands; a terminal view shows how commands appear, so they can be replicated easily.

Integrators do not need to engineer the ATEM connection themselves: they add the TCP Link for ATEM to the network and write simple TCP commands from control systems such as Crestron, AMX, Q-SYS and Extron or from proprietary software. This makes it ideal for corporate, government and education installations that want to manage ATEM switchers through familiar AV interfaces.

Key features

• TCP/IP interface for Blackmagic Design ATEM switchers
• Reports switcher state changes and forwards commands
• Simplifies ATEM integration with any third-party control system
• Ethernet with PoE
• Durable build quality for professional use
• Designed and made in Denmark

Compatibility

• Blackmagic Design ATEM switchers
• Crestron, AMX, Q-SYS and Extron control systems and custom software

In the box

• TCP Link for ATEM
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Micro USB cable
• Getting Started Guide

Specifications

• Network: 100 Mbit Ethernet with Power over Ethernet (PoE IEEE 802.3af)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for firmware updates and manual IP setting
• Platform: special firmware (UniSketch based)
• Dimensions (technical drawing): 86 x 57 x 26 mm
• Weight: 90 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
