SKAARHOJ Wave Board Mini IP audio control panel

SKAARHOJ Wave Board Mini

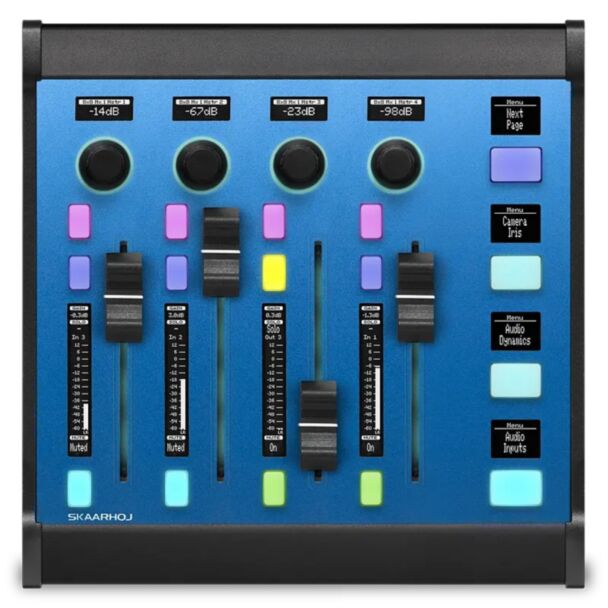

SKAARHOJ Wave Board Mini is a networked fader bank for controlling audio processors, audio mixers, DSPs, audio software and any other application that needs tactile faders, such as lighting control or camera shading. It has four SKAARHOJ channel strips, each with an OLED level meter display, a motorised fader, an encoder and dedicated 2-way buttons, plus four 4-way buttons to move through layers or menus or to fire snapshots.

The panel is IP-based, not USB-based: it does not need a computer to talk to the controlled device. It is connected to the network and sends and receives commands directly, including live level meters where supported. Like every SKAARHOJ panel it has Blue Pill inside, the Linux-based engine that lets you use ready-made mappings or assign every fader, button and encoder to the exact parameter you need, with several layers (for example DSP inputs and outputs on one layer, broadcast audio levels and lighting on another).

Wave Board Mini works as a compact standalone desk or as an extension of Wave Board, Color Fly or any other SKAARHOJ panel, for example to give a vision mixer operator faders for audio.

Key features

• 4 motorised 60 mm faders
• 4 assignable backlit encoders
• OLED display on each channel showing live metering (if supported by the controlled device)
• Three 2-way buttons per channel strip
• Four 4-way buttons for layers, menus and snapshots
• Widescreen OLED displays for each button and knob
• Universal control of multiple third-party devices over IP
• User customisation with the Reactor web UI
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• Audio devices such as DirectOut Prodigy.MP, DiGiCo, Allen & Heath, Grass Valley AMPP Audio Mixer and more
• SKAARHOJ collaborates with audio manufacturers including Q-SYS, Biamp, DirectOut, Waves, Yamaha and DiGiCo
• Can be combined with Wave Board, Color Fly and other SKAARHOJ panels

Notes

• Standard blue version, the most popular hardware version of Wave Board Mini.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Controls: 4 x motorised 60 mm fader, 4 x encoder, 12 x elastomer 2-way button, 4 x elastomer 4-way button
• Displays: 20 programmable OLED display tiles
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1200 g
• Dimensions (technical drawing): 176 mm wide, 178 mm deep, height 46 to 72 mm
• Country of origin: Denmark
