SKAARHOJ Wave Board Slim Black IP audio control panel

SKAARHOJ Wave Board - Slim Enclosure Black

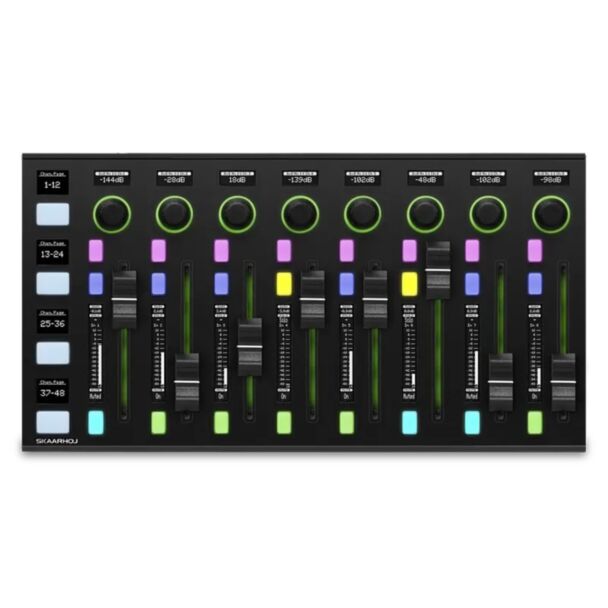

SKAARHOJ Wave Board is a networked fader bank for controlling audio processors, mixers, DSPs, audio software and other applications that need tactile faders, such as lighting control and camera shading. It has eight SKAARHOJ channel strips, each with an OLED level meter display, a motorised fader, an encoder and dedicated 2-way buttons, plus four 4-way buttons to toggle through layers or menus and fire snapshots.

Wave Board is not USB-based and needs no computer: connected to the network, it communicates bidirectionally with the controlled device, including live level meters, so it can also be placed in remote locations and control rooms. With Blue Pill inside you can select ready-made mappings or assign every component to the parameter you want, building several layers with the channel selection tool.

Wave Board works with any other SKAARHOJ device: with a Wave Board Mini it forms a 12-channel surface, and several Wave Boards, Wave Board Minis and Color Flys can be combined into a larger surface that works as one or as separate devices.

This version has a slimmer black chassis, designed for integration into a SKAARHOJ Mega Panel setup or for flush-mounting into a desk surface.

Key features

• 8 motorised 60 mm faders
• 8 assignable backlit encoders
• OLED display on each channel showing live metering (if supported by the controlled device)
• Three 2-way buttons per channel strip
• Four 4-way buttons for layers, menus and snapshots
• Widescreen OLED displays for each button and knob
• Universal control of multiple third-party devices over IP
• User customisation with the Reactor web UI
• 1G Ethernet with PoE
• Designed and made in Denmark
• Slim black enclosure for modular alignment

Compatibility

• Audio devices such as DirectOut Prodigy.MP, DiGiCo, Allen & Heath, Grass Valley AMPP Audio Mixer and more
• Audio management on video systems such as ATEM, TriCaster and vMix
• SKAARHOJ collaborates with audio manufacturers including Q-SYS, Biamp, DirectOut, Waves, Yamaha and DiGiCo
• Can be combined with Wave Board Mini, Color Fly and other SKAARHOJ panels

Notes

• Slim Enclosure Black version: different, slimmer chassis than the standard Wave Board (which has magnetic sides); controls, connections and functions are the same.
• Ethernet cable not included: SKAARHOJ recommends Cat 6 S/FTP or better.

In the box

• Controller
• 12V power supply (PHIHONG PSA15R-120P, 12V/1.25A, 1.5 m cable, EU/GB/US/AU plug depending on the destination country)
• Getting Started Guide

Specifications

• Controls: 8 x motorised 60 mm fader, 8 x encoder, 24 x elastomer 2-way button, 4 x elastomer 4-way button
• Displays: 40 programmable OLED display tiles
• Networking: 1G Ethernet with Power over Ethernet (PoE IEEE802.3af/t)
• Power: 12V DC jack (5.5 x 2.1 x 10 mm, centre positive) or PoE IEEE802.3af/t
• Service port: Micro USB for setting a manual IP address
• Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional network adapters, frame grabbers etc.
• Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux), full Reactor and Device Core licenses included
• Weight: 1574 g
• Country of origin: Denmark
• Width (technical drawing): 272 mm
