SKAARHOJ XPoint 24 desktop button controller

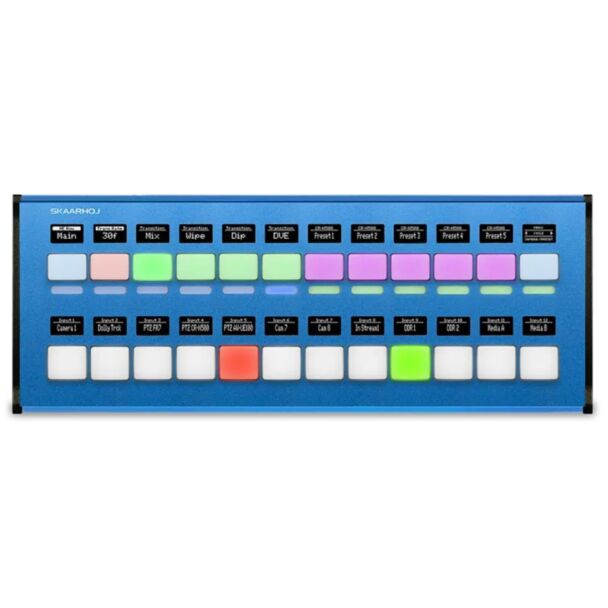

SKAARHOJ XPoint 24

The XPoint 24, with Blue Pill Inside, is a compact, modular desktop controller that adds control and flexibility to production setups. It has 24 four-way buttons with RGB colouring and customizable OLED displays for precise, multi-layered control.

Its 12 multi-level LED indicator bars provide extensive tally and status feedback. Used standalone or together with other controllers, the XPoint 24 offers a streamlined way to manage a wide range of parameters.

Key features

• 24 programmable four-way buttons with RGB colouring
• 24 OLED displays for labels and feedback
• 12 multi-level LED bars for tally and status
• Multi-layer configuration
• Standalone or combined with other SKAARHOJ controllers
• Extensive list of supported devices, universal control of multiple third-party devices
• User customization with the Reactor web UI
• Modular design, advanced ergonomics, durable build
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• All devices supported by SKAARHOJ device cores

In the box

• XPoint 24
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Getting Started Guide

Specifications

• Buttons: 24 elastomer four-way buttons with display
• OLED: 24 tiles 64x32 pixels
• LED bars: 12 (3 steps)
• Network: 1G Ethernet with Power over Ethernet (PoE IEEE 802.3af/at)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for manual IP setting
• Platform: Blue Pill Inside (Reactor, device cores, skaarOS Linux), full Reactor and Device Core licenses included
• Footprint (technical drawing): 278 x 94 mm
• Weight: 482 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
