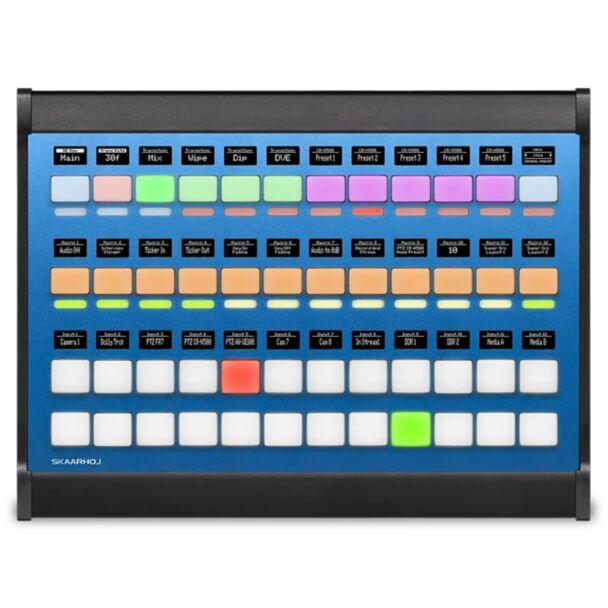

SKAARHOJ XPoint 48 desktop button controller

SKAARHOJ XPoint 48

XPoint 48, with Blue Pill Inside, is a comprehensive modular desktop controller. With 48 four-way buttons, RGB colouring and 36 customizable OLED displays it offers detailed command over many parameters, and its 24 multi-level LED indicator bars give enhanced tally feedback, making it suited to large-scale production environments.

Whether used standalone or combined with other SKAARHOJ controllers, it provides a large, multi-layer control surface designed for the demands of professional productions. A USB-A port accepts peripherals such as Stream Deck or X-keys.

Key features

• 48 programmable four-way buttons with RGB colouring (36 with OLED display)
• 36 OLED displays for labels and feedback
• 24 multi-level LED bars for tally and status
• Standalone use or combination with other SKAARHOJ controllers
• USB-A port for peripherals
• Extensive list of supported devices, universal control of multiple third-party devices
• User customization with the Reactor web UI
• Modular design, advanced ergonomics, durable build
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• All devices supported by SKAARHOJ device cores

Notes

• Standard version with elastomer buttons; also available with NKK buttons (XPoint 48 w/NKK buttons).

In the box

• XPoint 48
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Getting Started Guide

Specifications

• Buttons: 36 elastomer four-way buttons with display, 12 elastomer four-way buttons without display
• OLED: 36 tiles 64x32 pixels
• LED bars: 24 (3 steps)
• Peripherals: USB-A 2.0 (500 mA)
• Network: 1G Ethernet with Power over Ethernet (PoE IEEE 802.3af/at)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for manual IP setting
• Platform: Blue Pill Inside (Reactor, device cores, skaarOS Linux), full Reactor and Device Core licenses included
• Footprint (technical drawing): 235 x 178 mm
• Weight: 1108 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
