SKAARHOJ XPoint 48 NKK desktop button controller with NKK buttons

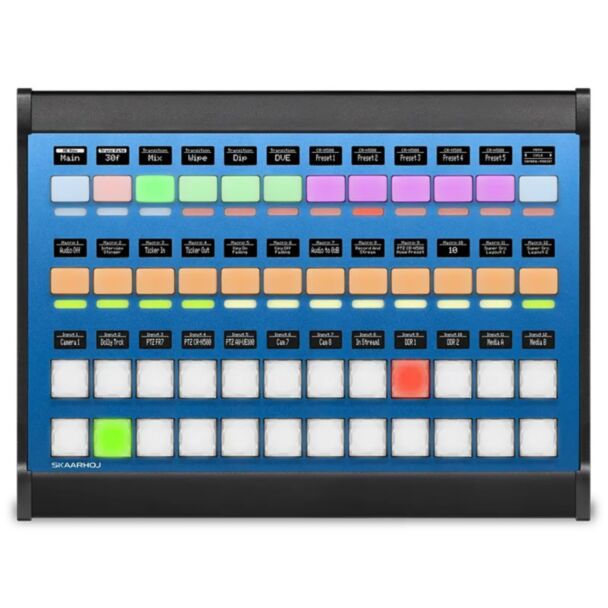

SKAARHOJ XPoint 48 with NKK buttons

The XPoint 48 with NKK buttons, with Blue Pill Inside, is a modular desktop controller designed for fast-paced environments. Compared with the standard XPoint 48 it uses sculptured cap NKK broadcast buttons for accurate tactile feedback. Its magnetic endplates make it easy to snap it together with other controllers such as the Air Fly Pro to build a tailored control surface.

Whether used standalone or combined with other SKAARHOJ controllers, it provides a large, multi-layer control surface designed for the demands of professional productions. A USB-A port accepts peripherals such as Stream Deck or X-keys.

Key features

• 48 programmable buttons: 24 NKK sculptured cap buttons (12 with display) and 24 four-way buttons with display
• 36 OLED displays for labels and feedback
• 24 multi-level LED bars for tally and status
• Magnetic endplates for modular integration with other controllers (e.g. Air Fly Pro)
• USB-A port for peripherals
• Extensive list of supported devices, universal control of multiple third-party devices
• User customization with the Reactor web UI
• Modular design, advanced ergonomics, durable build
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• SKAARHOJ Air Fly Pro and other SKAARHOJ controllers (modular combination)
• All devices supported by SKAARHOJ device cores

Notes

• Version with NKK buttons of the XPoint 48: half of the buttons are NKK sculptured hard cap keys instead of elastomer buttons.

In the box

• XPoint 48 w/NKK buttons
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Getting Started Guide

Specifications

• Buttons: 24 elastomer four-way buttons with display, 12 NKK sculptured hard cap buttons, 12 NKK sculptured hard cap buttons with display
• OLED: 36 tiles 64x32 pixels
• LED bars: 24 (3 steps)
• Peripherals: USB-A 2.0 (500 mA)
• Network: 1G Ethernet with Power over Ethernet (PoE IEEE 802.3af/at)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for manual IP setting
• Platform: Blue Pill Inside (Reactor, device cores, skaarOS Linux), full Reactor and Device Core licenses included
• Footprint (technical drawing): 235 x 178 mm
• Weight: 1108 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
