Swit S-3812S – 2-channel fast charger with LCD for V-Mount batteries

Dual-channel Fast Charger
Max charging current: 6A

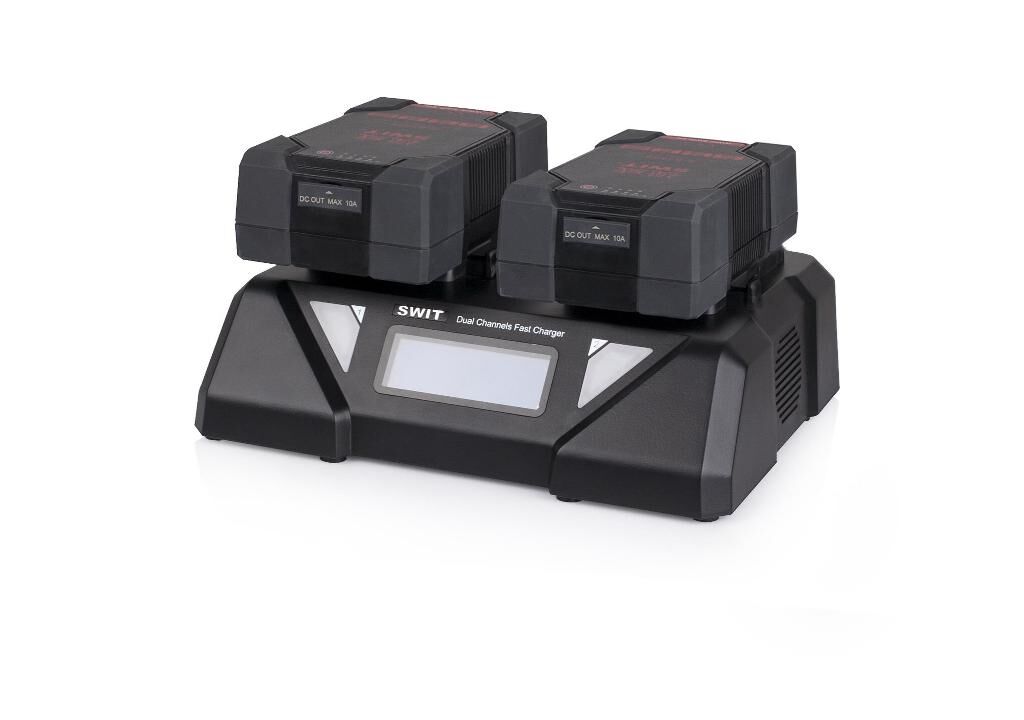

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
The following battery models support 6A fast charging:
PB-H290S, PB-S220S, PB-R160S, PB-R290S, S-8340S, S-8360S, D-8161S, S-8180S, S-8113S, S-8183S
And for other batteries, the charging current is 3A.

AC-DC Adapting Output

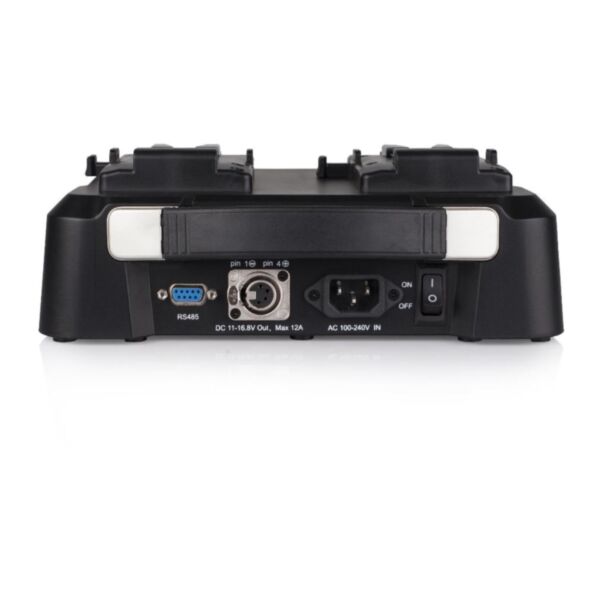

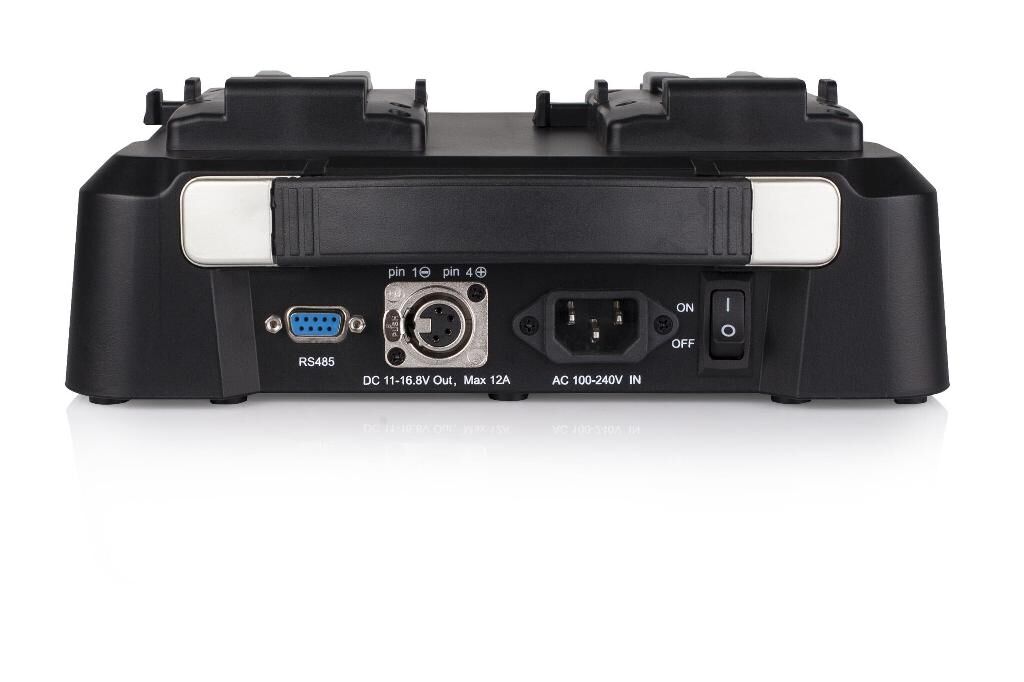

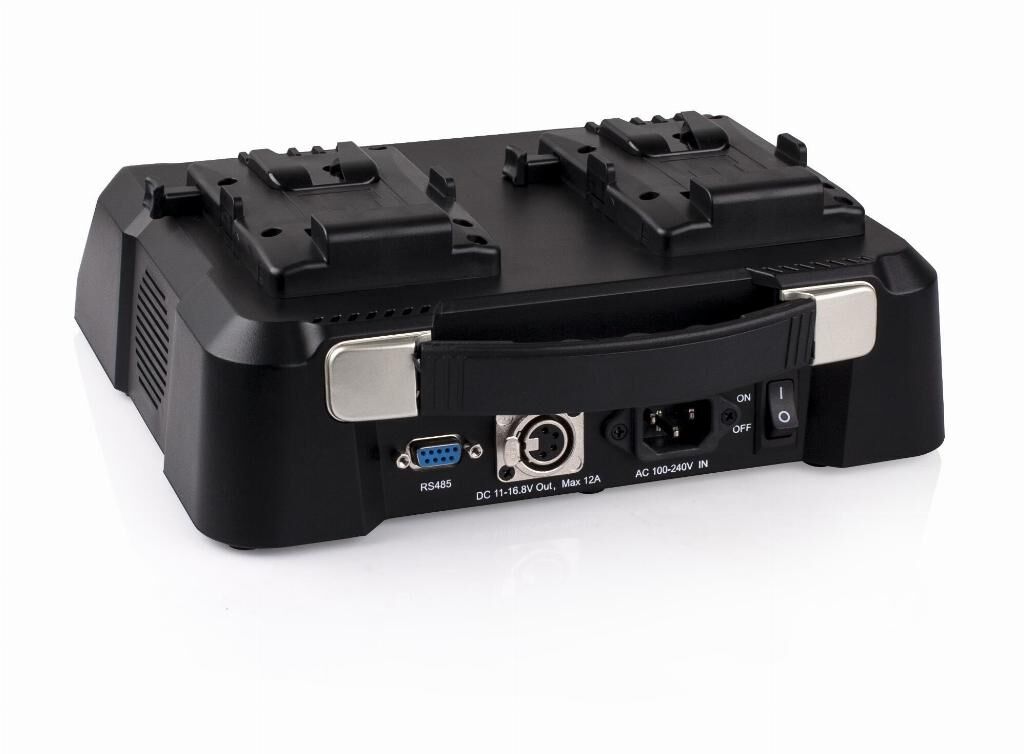

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential)
Remark: S-7102 cable is optional purchased.

You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.

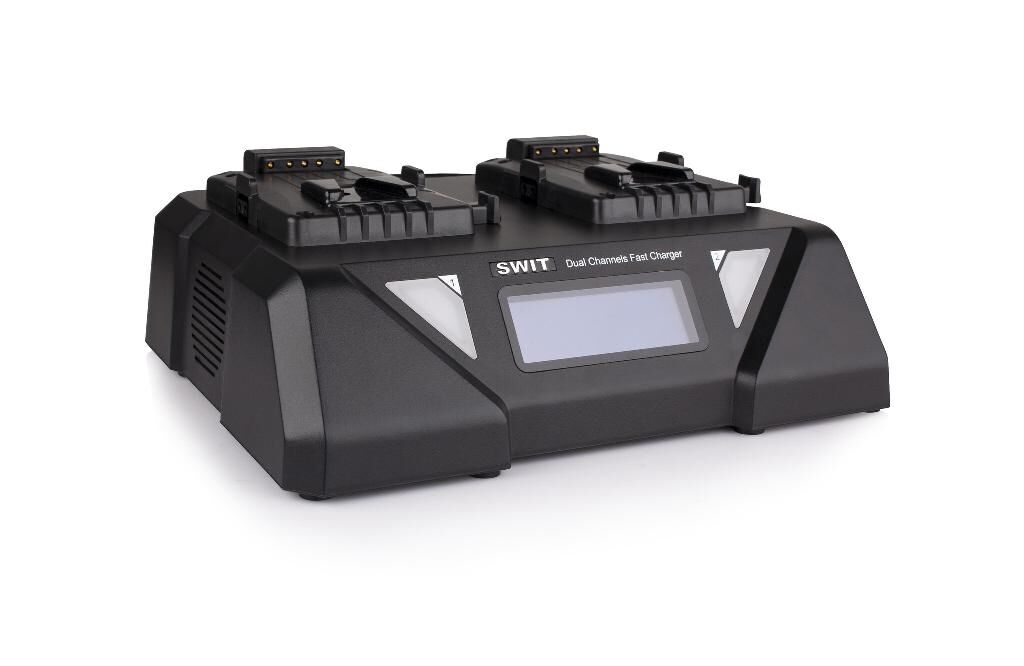

LCD Charging Info Display
S-3812S has an LCD screen to display the real time charging/adapting information, includes:
- Battery Charging/Discharging status
- Real time capacity and percentage
- Real time Voltage/Current
- Remaining time to fully charged
- Remaining time to fully discharged
- Battery cycle times
- Adapting output current and power

3-color LED Indicators
- S-3812S has the 3-color LED indicators for both 2 channels:
- Red light slowly flashes: The battery is charging
- Red light fast flashes: The battery is about to fully charged
- Green light constant: The battery is fully charged
- Green light flashes: The battery is adapting output
- Orange light flashes: Battery or Charger abnormal alert
