Wooden Camera 222200 – Unified Baseplate for Blackmagic URSA Mini, URSA Mini Pro and Sony FX6
GTIN: 0702534256471

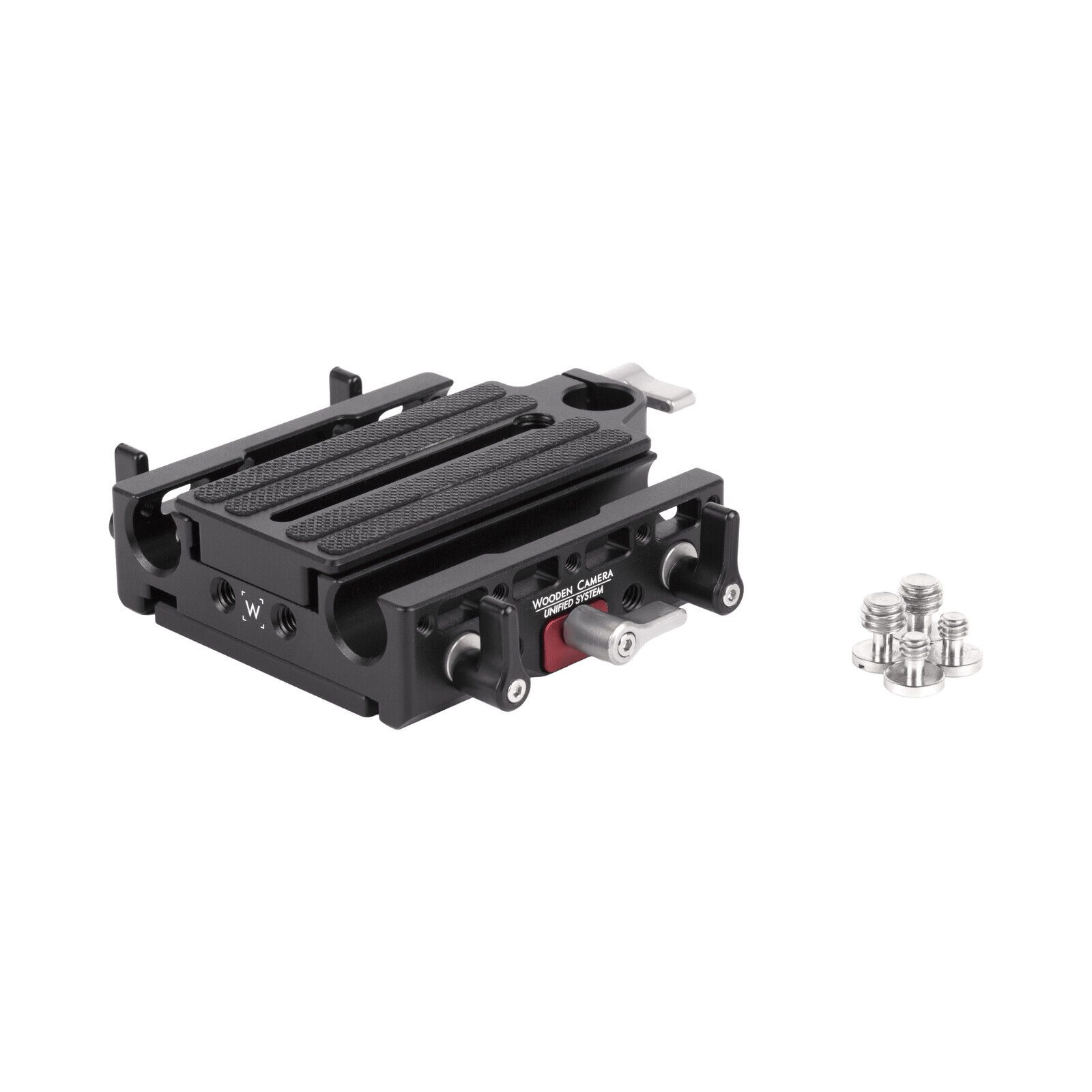

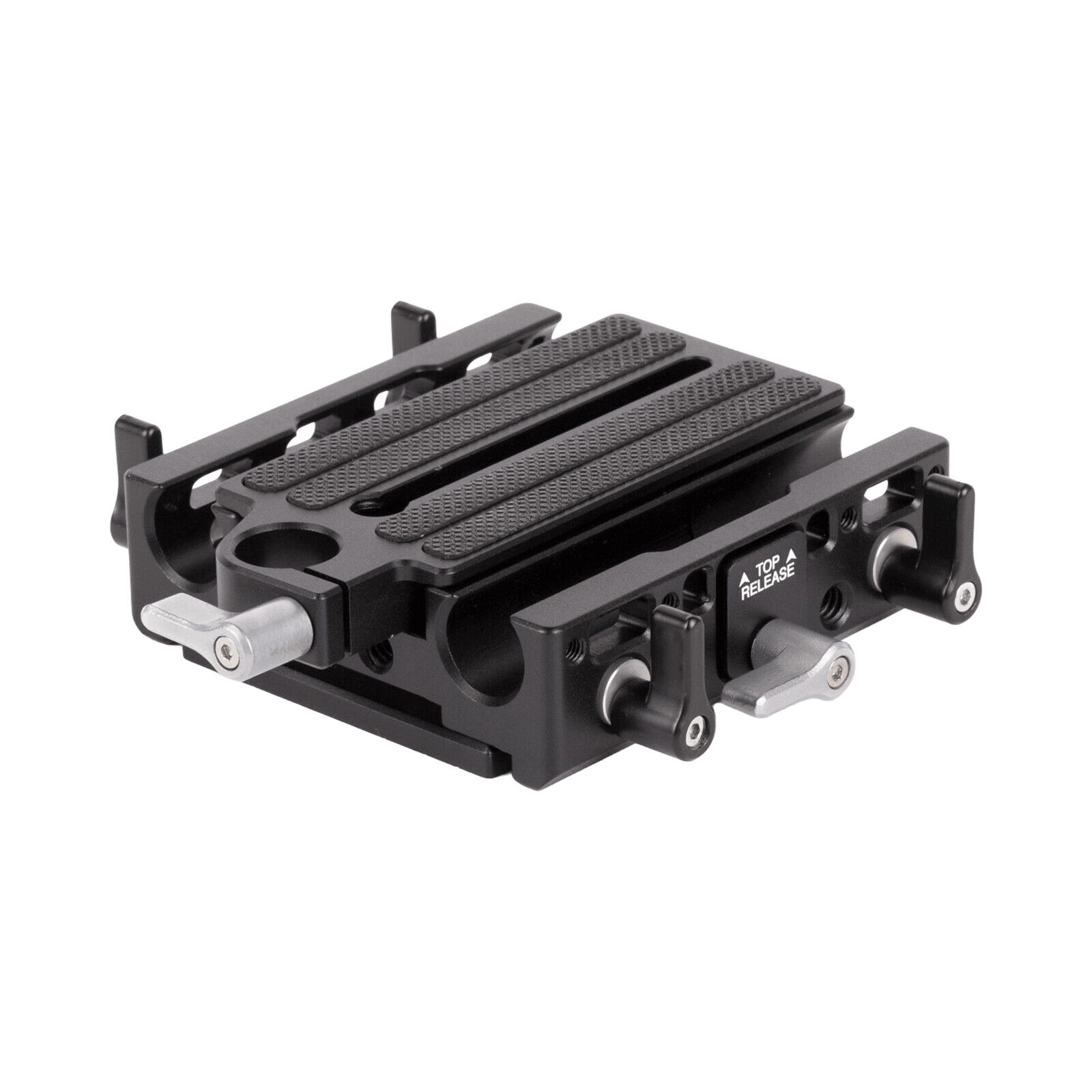

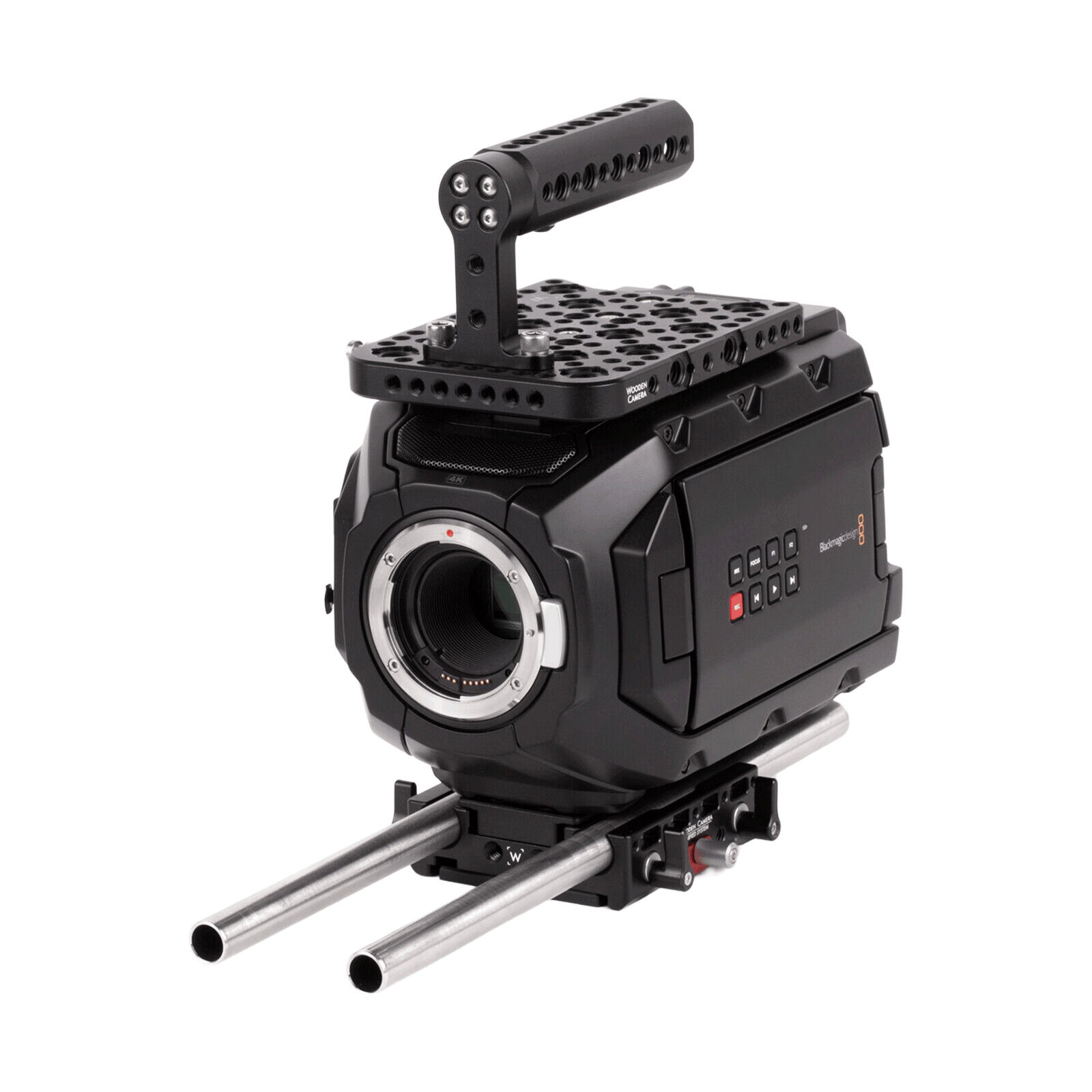

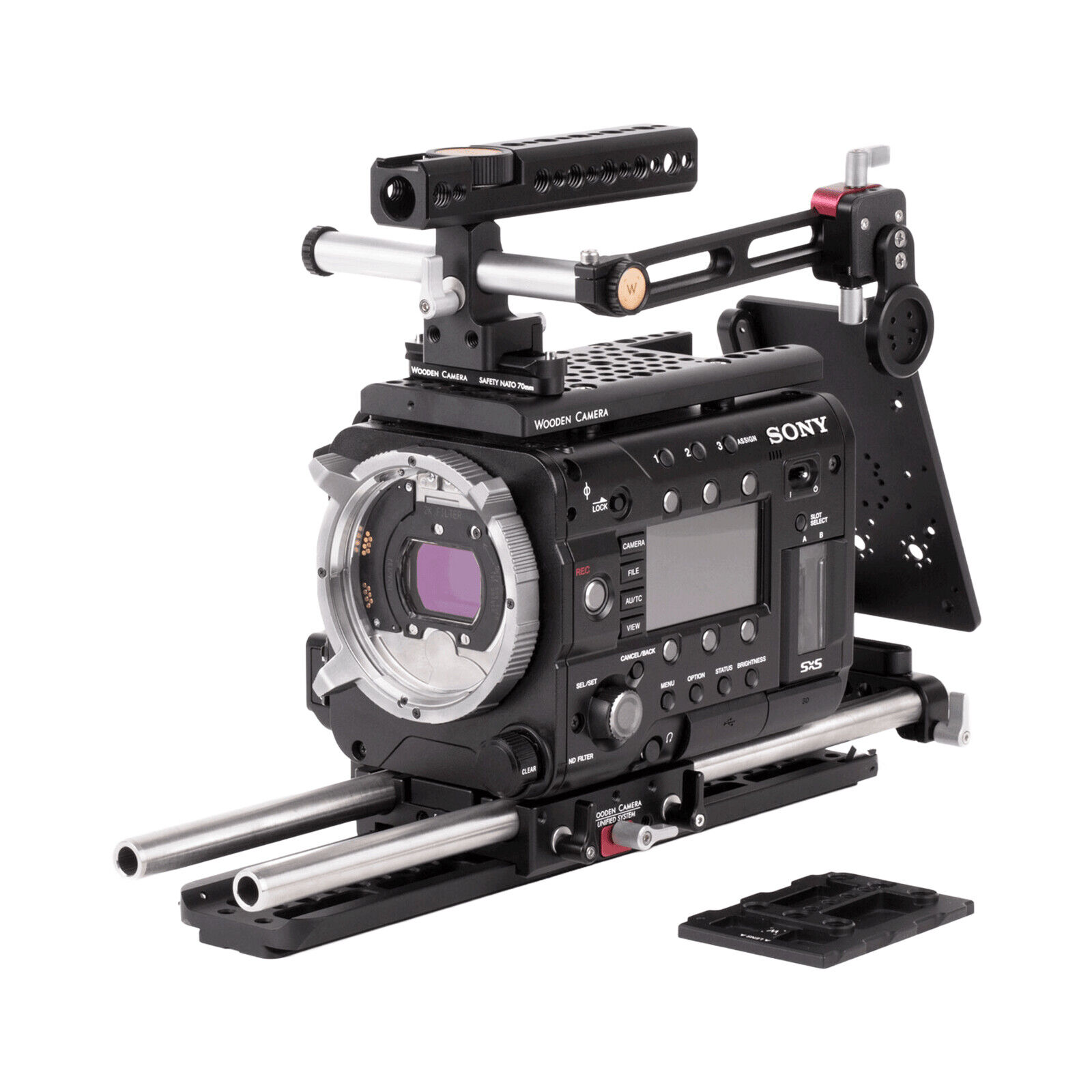

Quick release baseplate with 15 mm lightweight rods at the correct lens height, for Blackmagic URSA Mini/Mini Pro/12K, Sony FX6 and Rialto.
Wooden Camera 222200 – Unified Baseplate for Blackmagic URSA Mini, URSA Mini Pro and Sony FX6

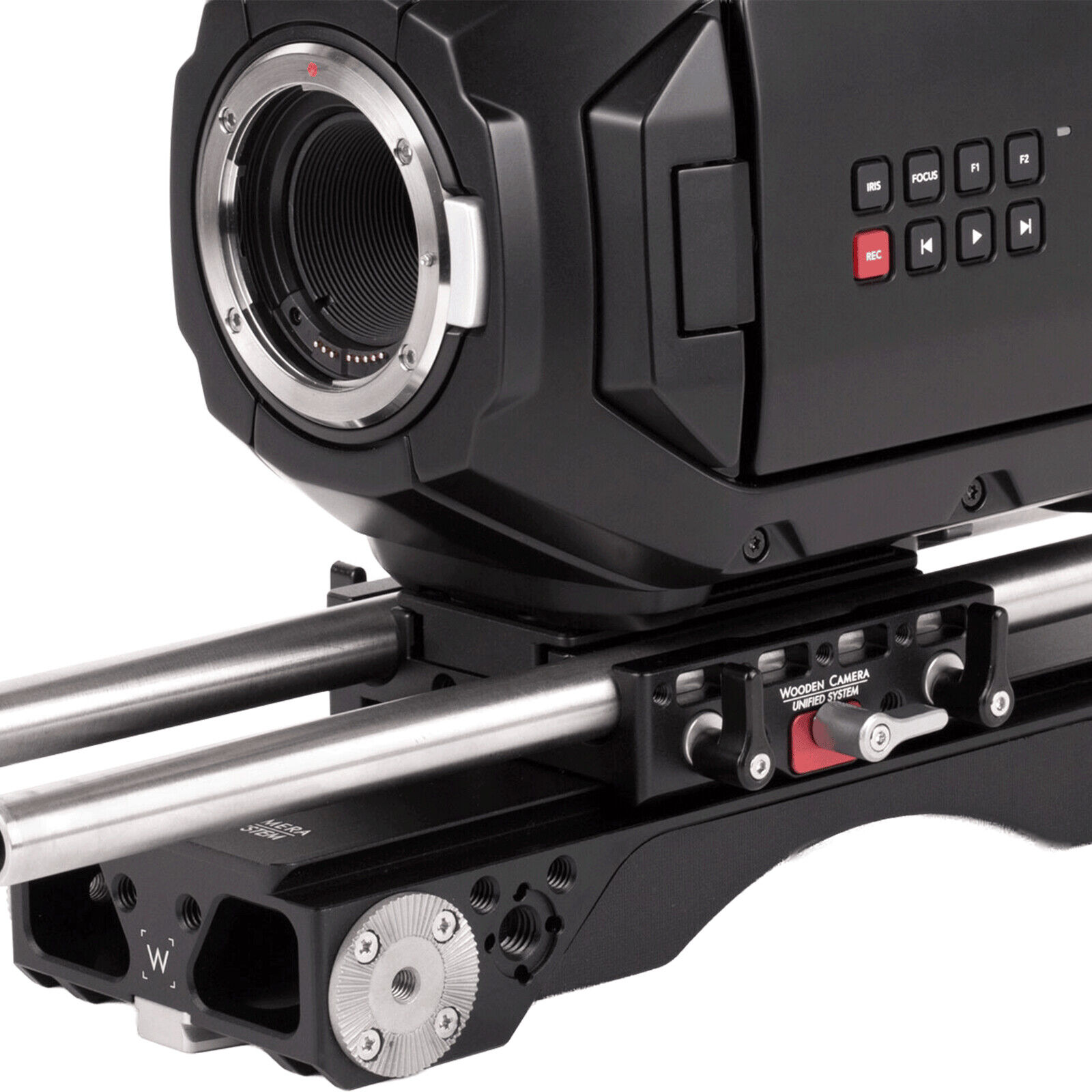

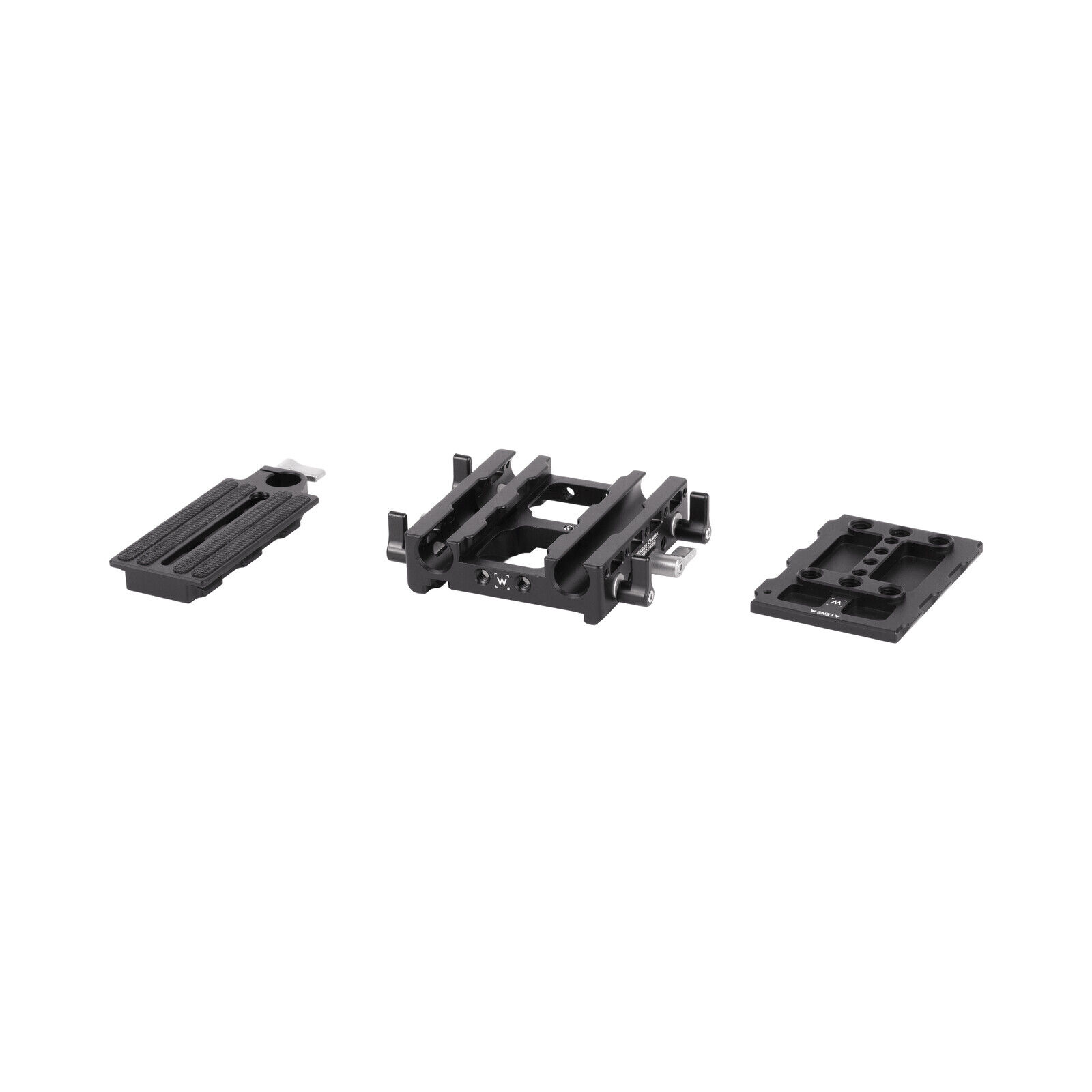

The Unified Baseplate carries two 15 mm lightweight rods at the correct lens height and releases in two ways: leaving the rods on the tripod or taking them with the camera.
Features
- Pass-through 15 mm rods with two locking thumbscrews per side
- Upper ARCA Swiss dovetail with ¼"-20 holes for gimbals and tripod plates
- Vertical 15 mm rod opening to support a lens adapter foot
- Lower dovetail with ¼"-20 and ⅜"-16 holes for tripod plates and ARRI standard bridge plates
- Integrated ARRI dovetail slot under the base
Note: Listed by the manufacturer as a legacy model.
Specifications
| Compatibility | Blackmagic URSA Mini, URSA Mini Pro, URSA Mini Pro 12K, Sony FX6, Sony Rialto |
|---|---|
| Weight | 362.8 g |
| Dimensions | 50.8 x 152.4 x 152.4 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | 222200 |
| Ean | 0702534256471 |
