Wooden Camera 222700 – Unified Baseplate camera dovetail for Blackmagic URSA Mini, URSA Mini Pro and Sony FX6
GTIN: 0702534256525
Camera dovetail fixing under the camera, for the Unified Baseplate: Blackmagic URSA Mini/Mini Pro/12K, Sony FX6 and Rialto.
Wooden Camera 222700 – Unified Baseplate camera dovetail for Blackmagic URSA Mini, URSA Mini Pro and Sony FX6

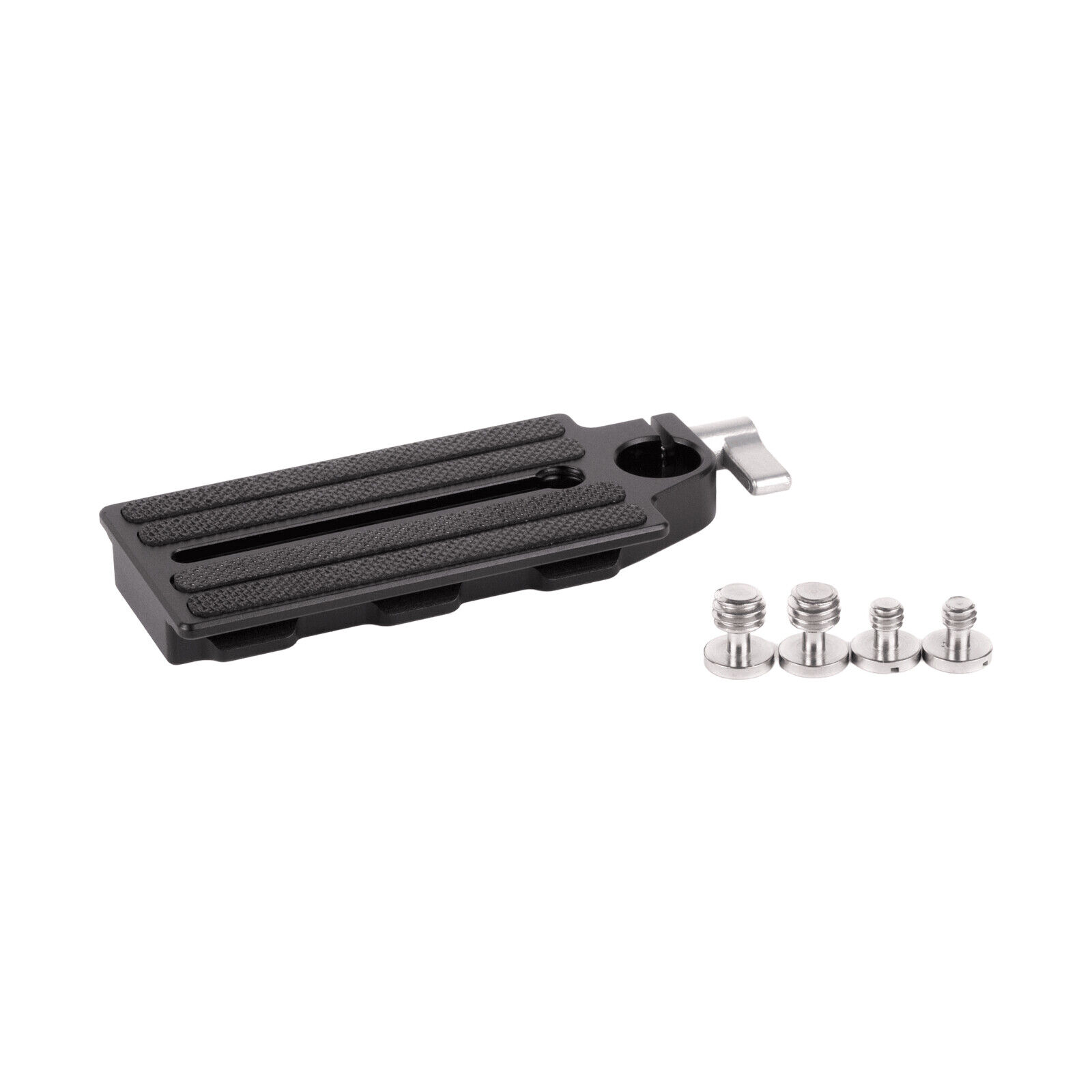

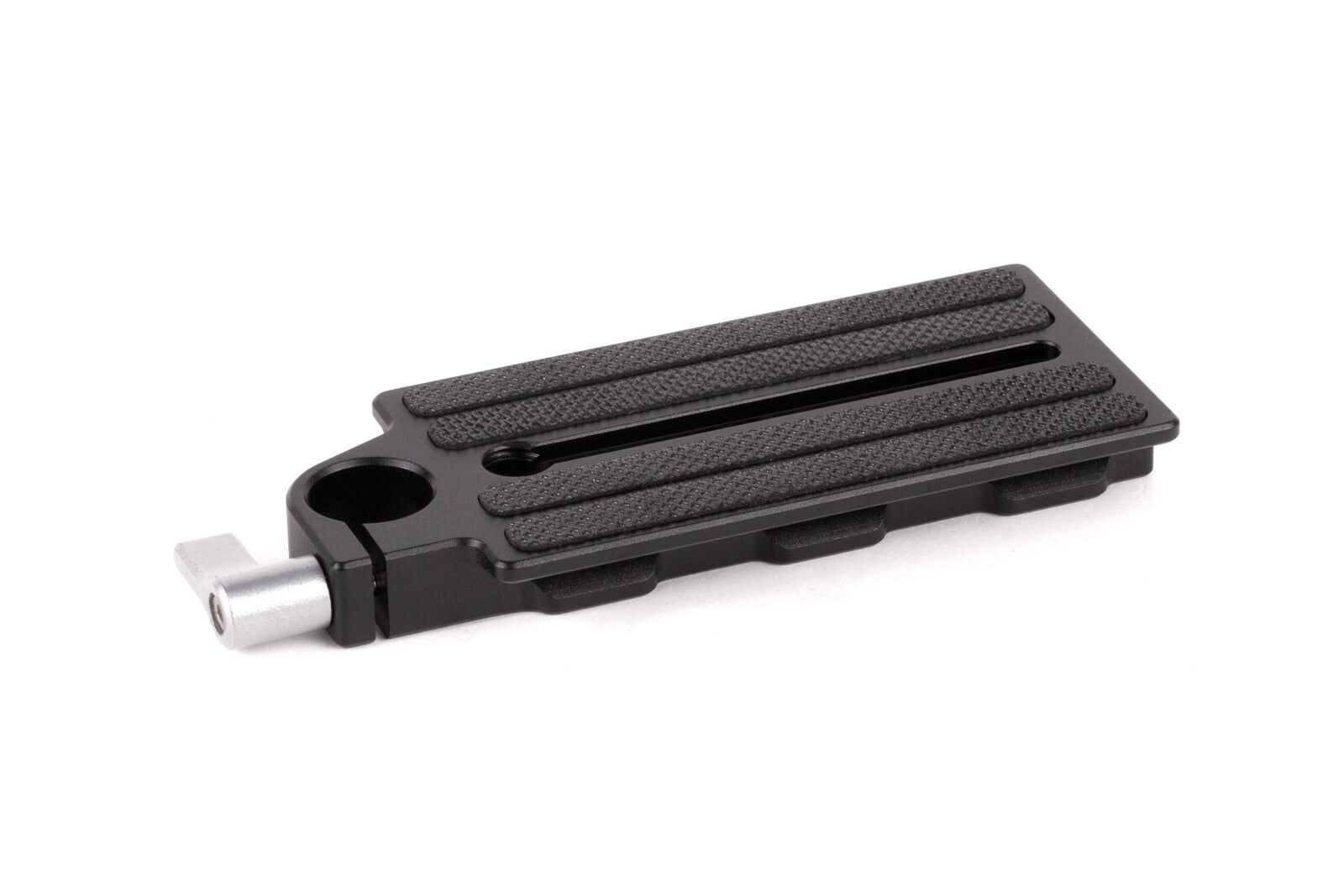

Plate that fixes under the camera and, with the Unified Baseplate core unit (no dovetails), carries 15 mm lightweight rods at the correct lens height.
Features

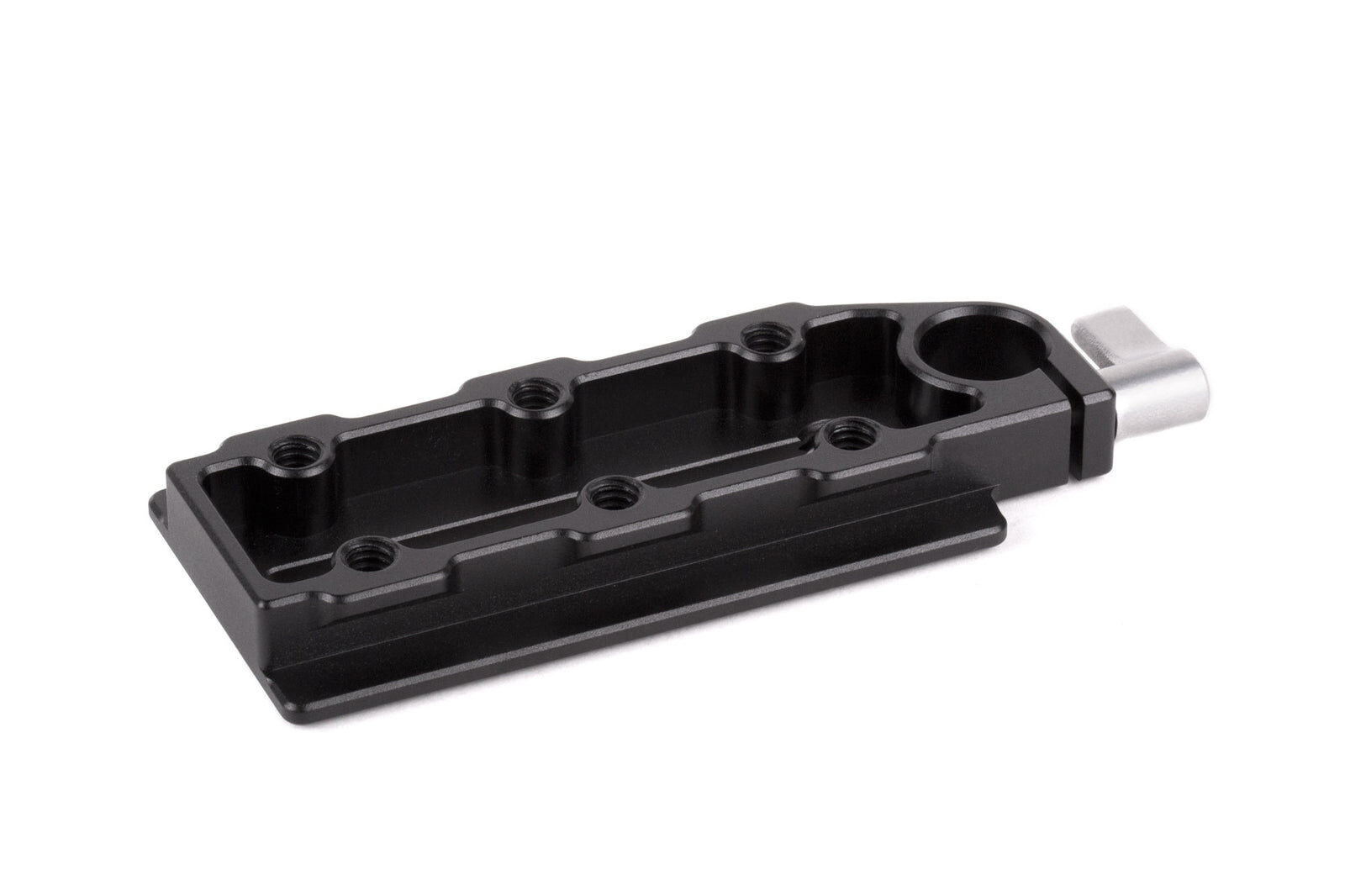

- Slotted pattern: ¼"-20 and ⅜"-16 screws up to 70 mm apart
- Non-slip rubber surface prevents the camera from twisting
- Lower ARCA Swiss profile with patented serrated dovetail and ¼"-20 holes for gimbals
- Vertical 15 mm rod opening for lens adapter supports
Package contents
- 2 x ¼"-20 low profile screws
- 2 x ⅜"-16 low profile screws
Specifications
| Compatibility | Blackmagic URSA Mini, URSA Mini Pro, URSA Mini Pro 12K, Sony FX6, Sony Rialto |
|---|---|
| Weight | 90.7 g |
| Dimensions | 152.4 x 76.2 x 25.4 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | 222700 |
| Ean | 0702534256525 |
