Wooden Camera 239500 – D-Box – V-Mount power plate for Blackmagic URSA Mini and URSA Mini Pro

Wooden Camera 239500 – D-Box, V-Mount power plate for Blackmagic URSA Mini and URSA Mini Pro

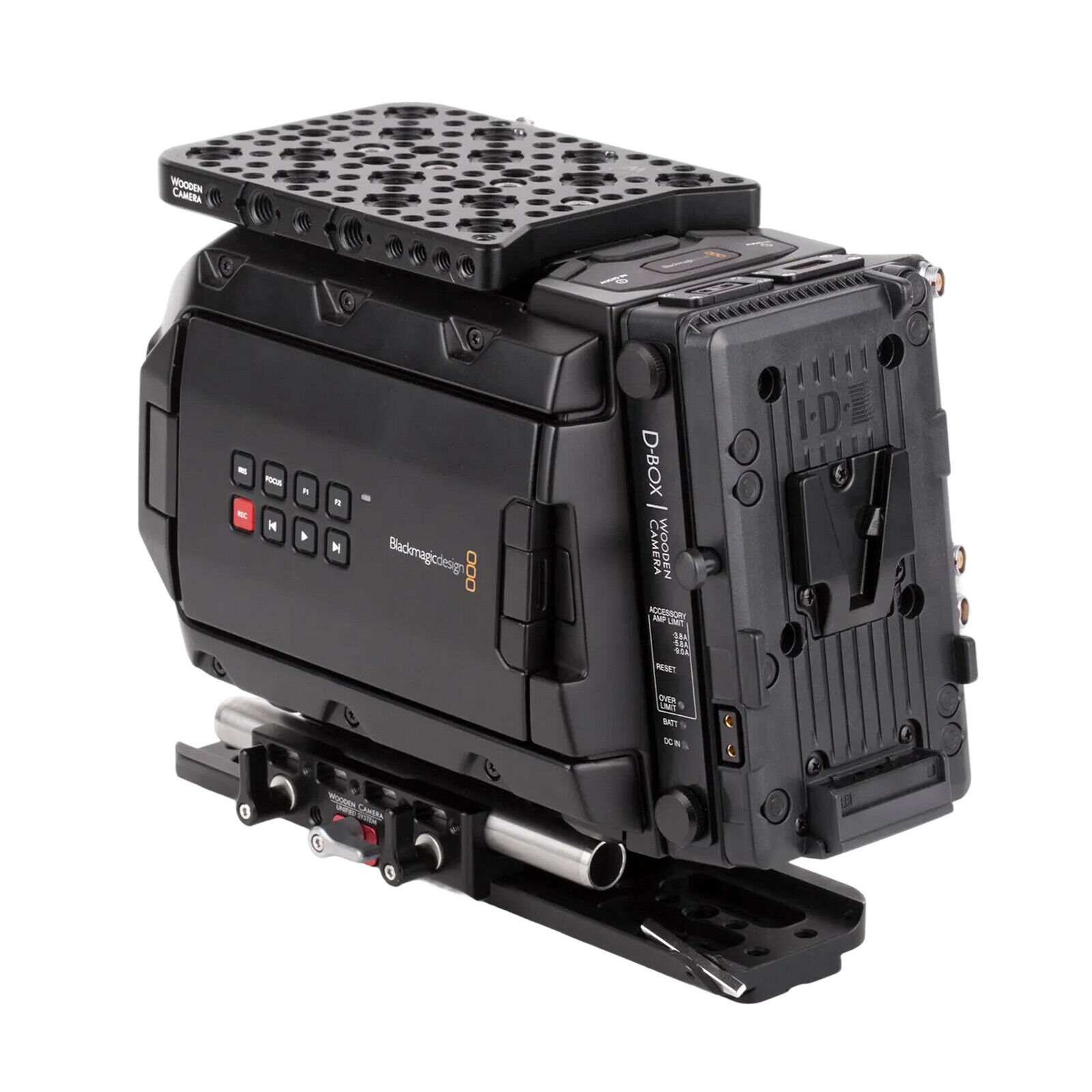

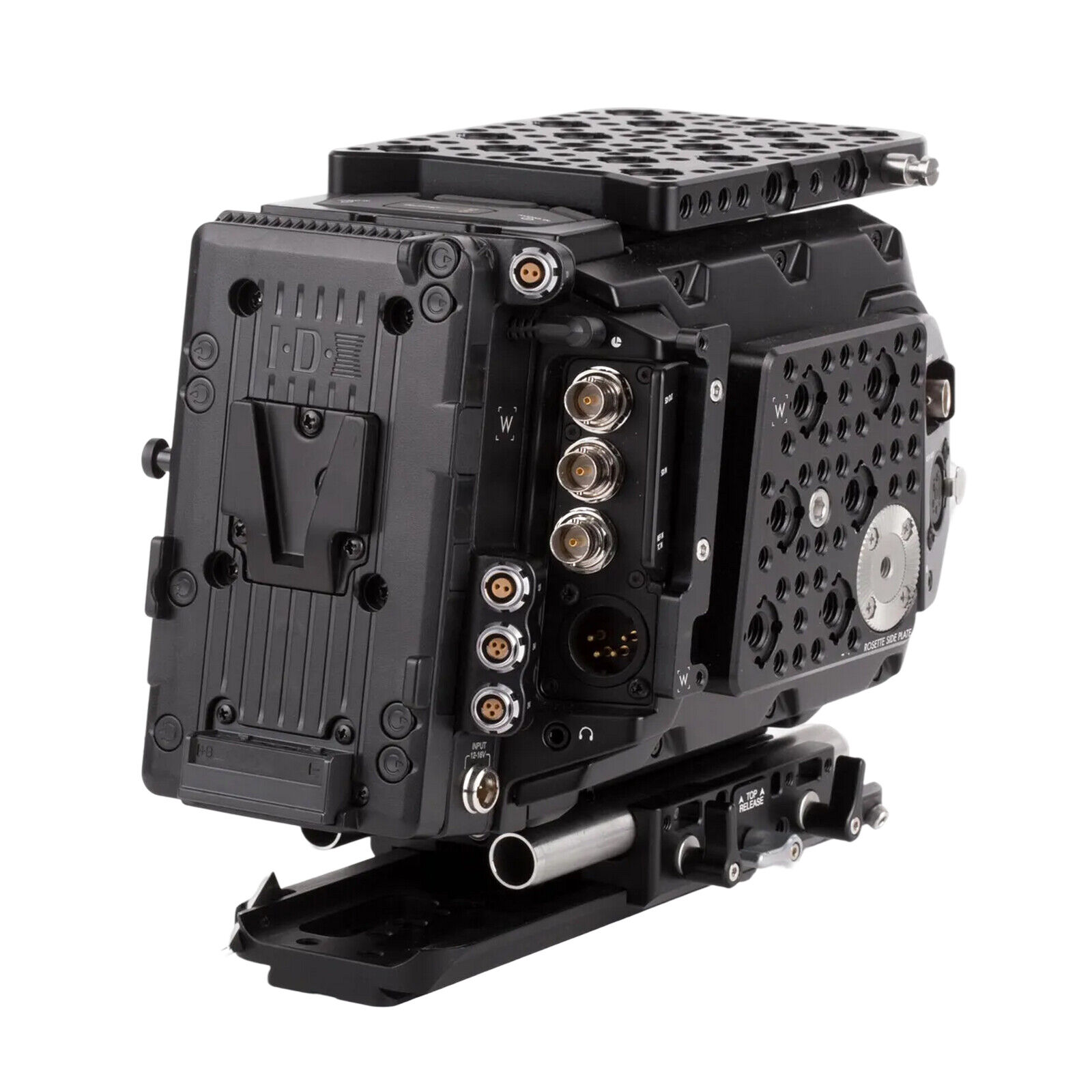

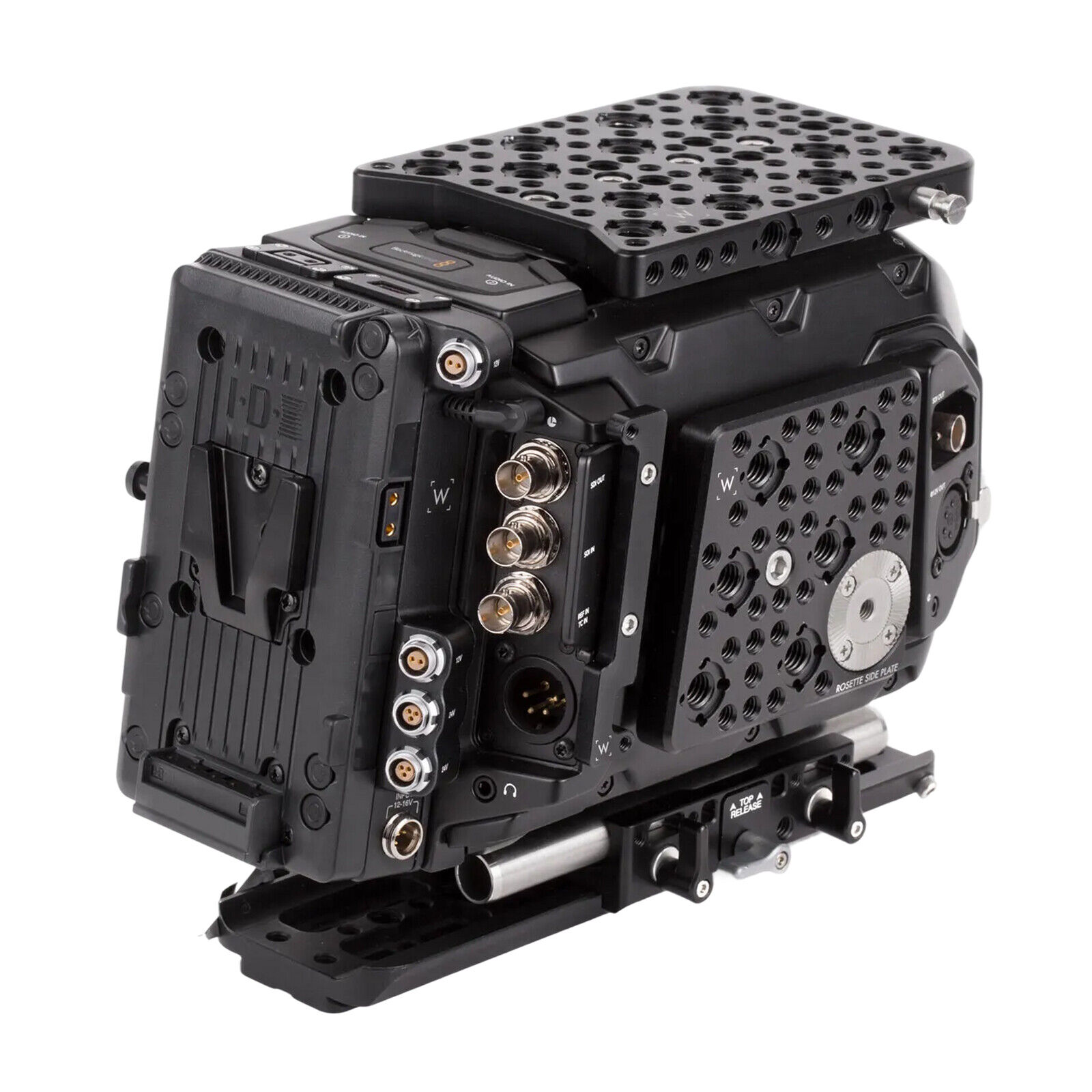

A version of Wooden Camera's D-Box for the Blackmagic URSA Mini Pro/12K and URSA Mini EF, PL and B4 models. It adds power distribution to accessories, ARRI standard record start/stop and battery hot swap.

Note: not compatible with the Blackmagic URSA Cine 12K and 17K.

Features

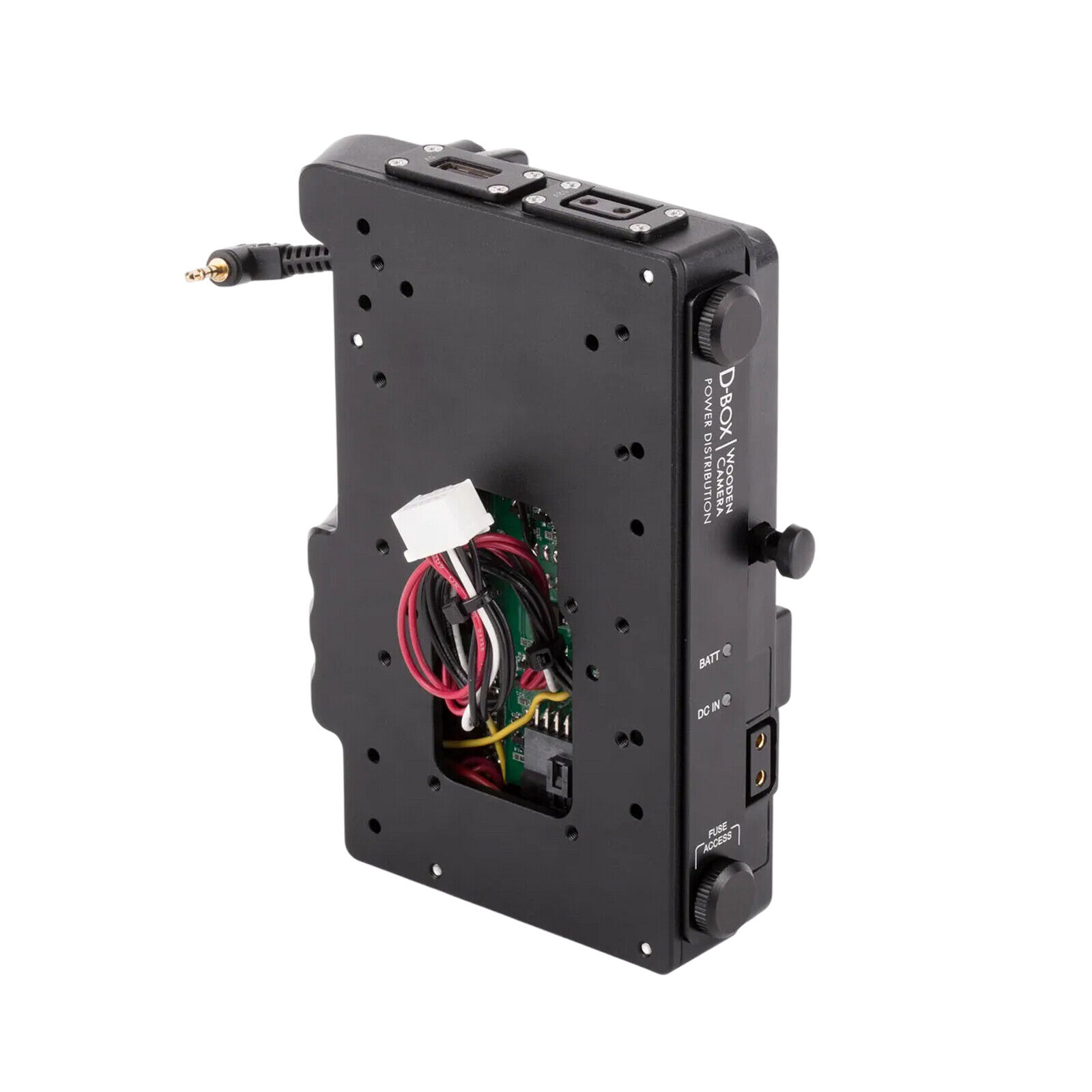

• Connects directly to the back of the camera through a dedicated Molex connector, with no external cabling, and uses the rear LANC port for start/stop control.
• Two 3-pin Fischer ports for start/stop with any ARRI standard trigger.

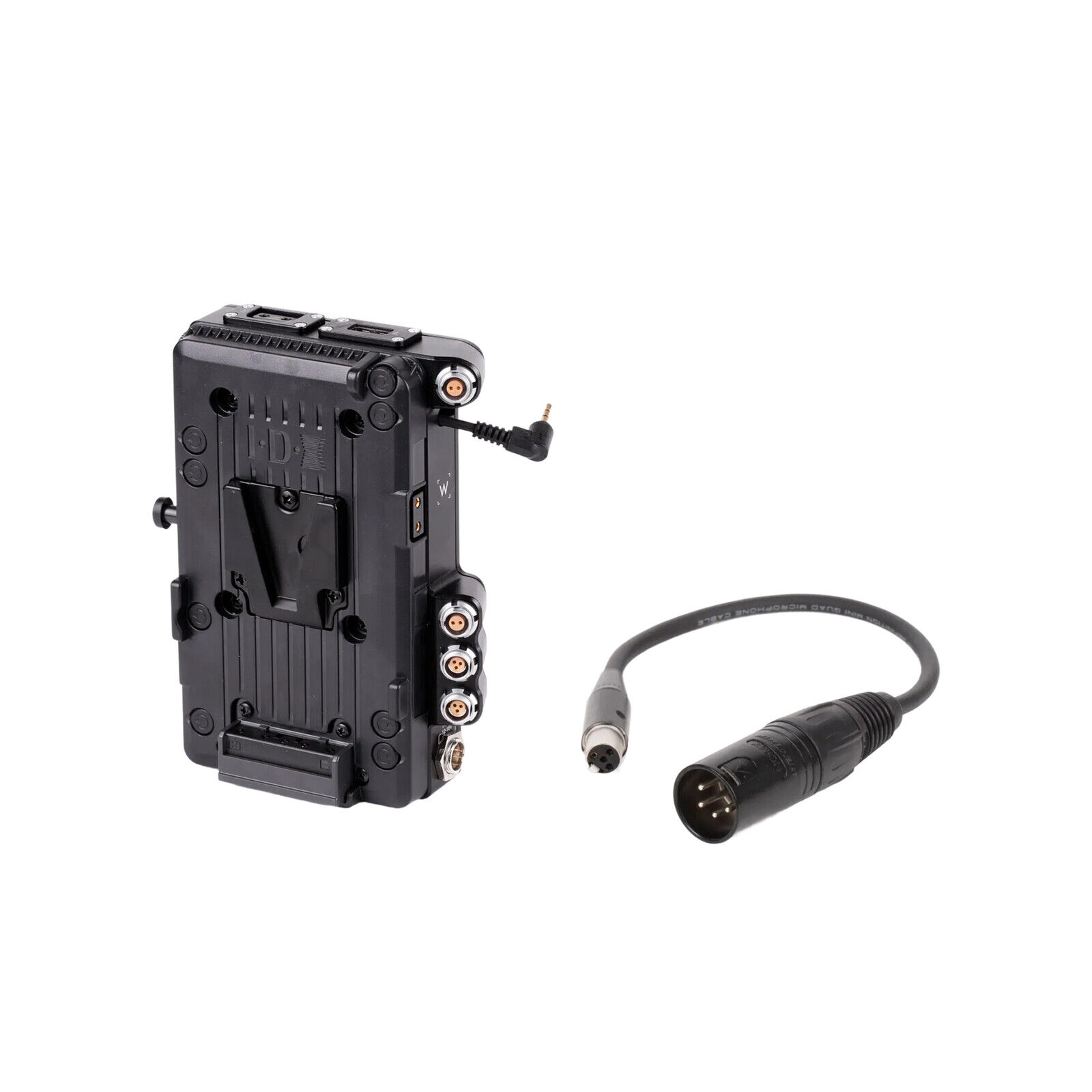

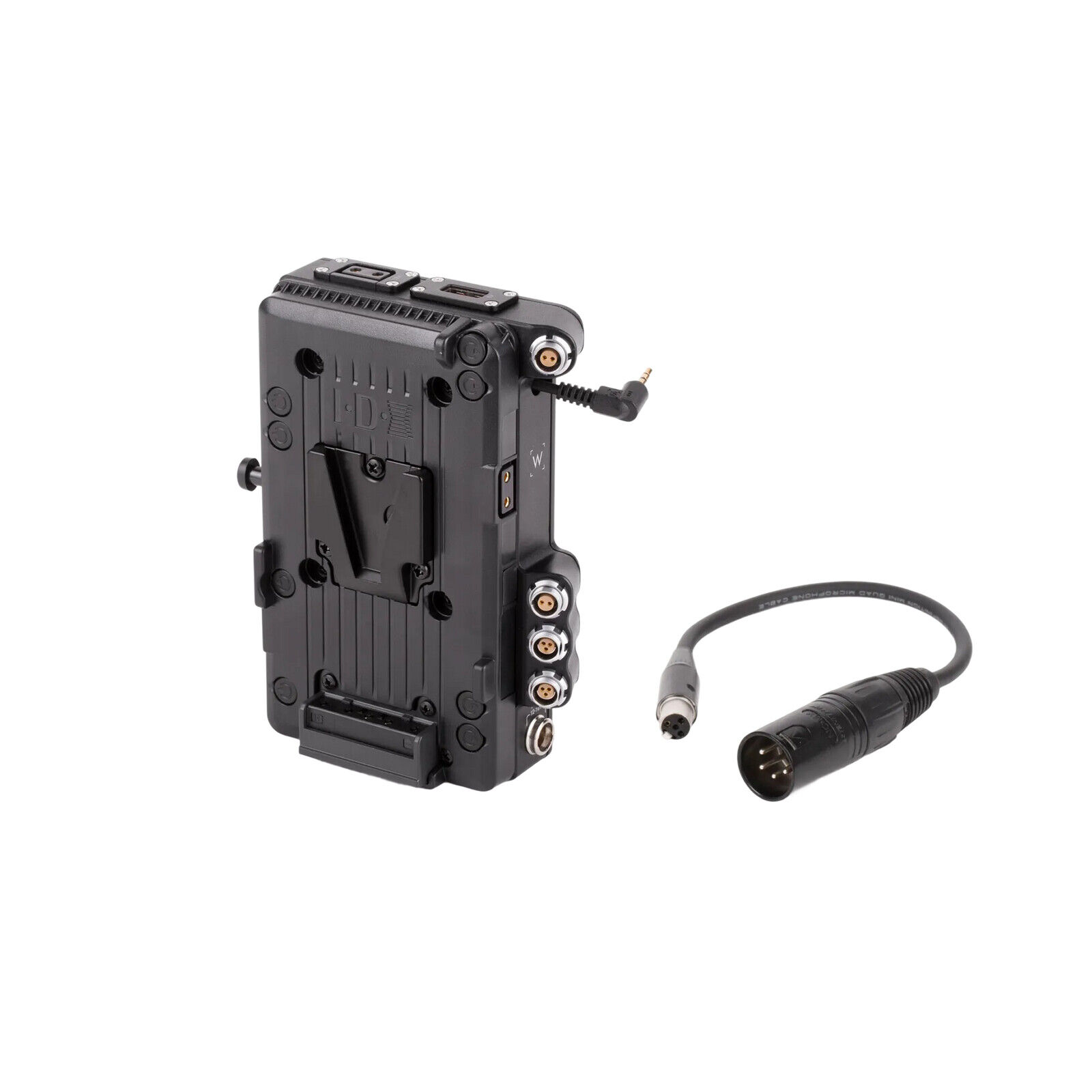

• Mini 4-pin XLR DC input, with pigtail to full-size 4-pin XLR included: the camera can be powered from mains or an external plate during a battery change. With both battery and DC connected, the D-Box draws from DC and keeps the battery charged.
• Genuine IDX V-Mount plate with 2 D-Tap outputs. Recommended accessory draw up to 5 A.

D-Box outputs

• D-Tap, 12 V unregulated
• USB, 5 V regulated
• 2 x 2-pin connectors, 12 V unregulated, ARRI standard wiring
• 2 x 3-pin Fischer, 24 V regulated (2 A continuous, 3 A surge shared), ARRI standard start/stop
• DC input: 12-16 V

The stock power supply shipped with the URSA Mini Pro does not provide enough current to power the D-Box with accessories or for hot swap: Wooden Camera offers a higher-rated 15 V supply.
