Wooden Camera K10039 – D-Box System for Blackmagic URSA Cine 12K/17K
GTIN: 0810112520453
D-Box power system for Blackmagic URSA Cine 12K/17K: 26 V Gold Mount Plus plate with wedge, accessory outputs and 30 V power supply.
Wooden Camera K10039 – D-Box System for Blackmagic URSA Cine 12K/17K

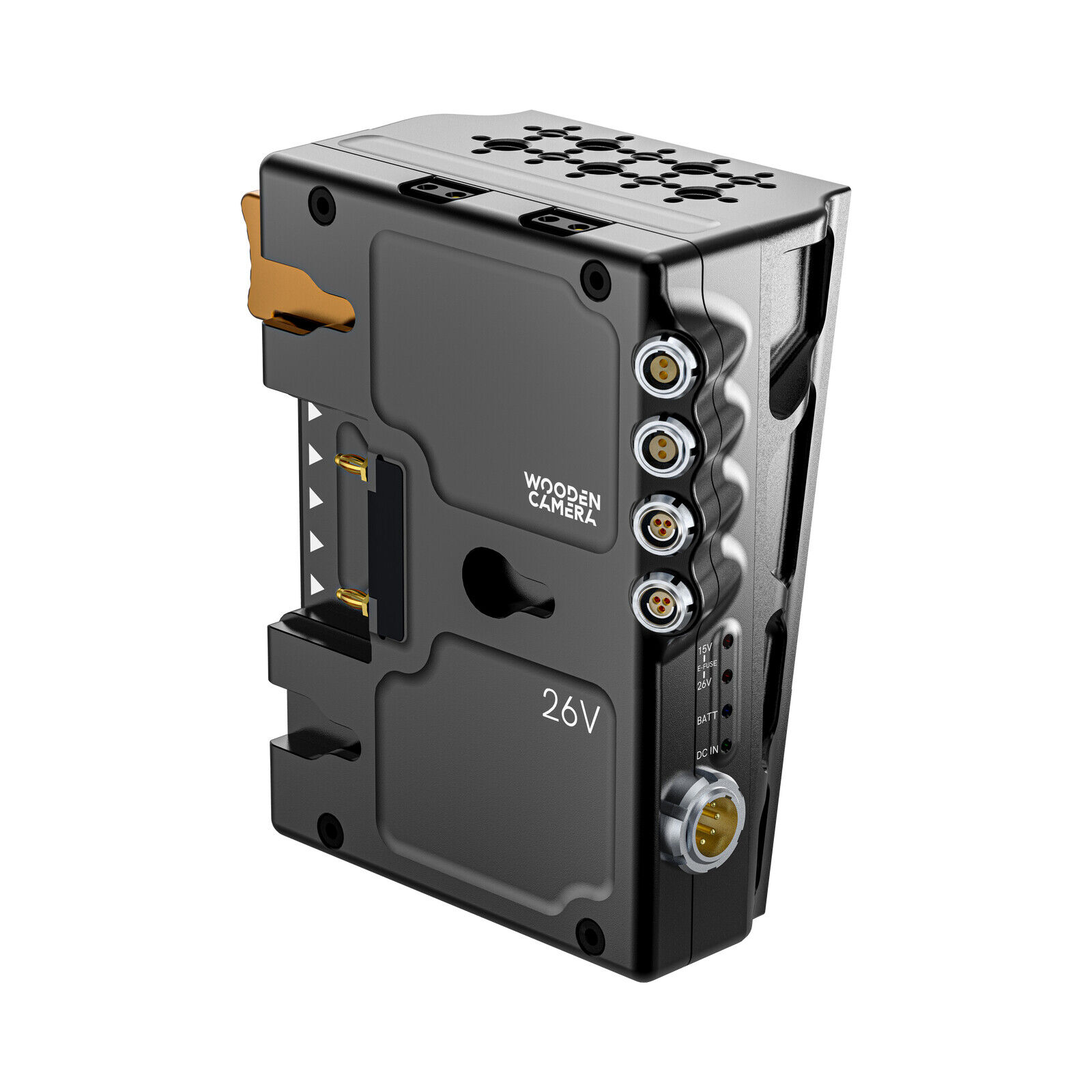

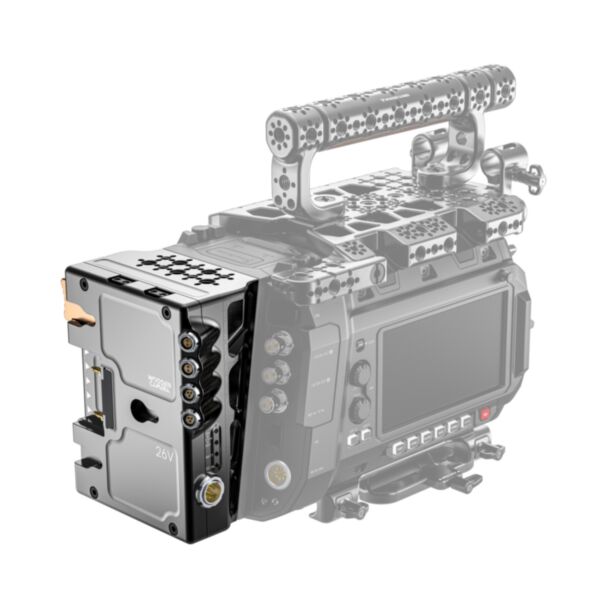

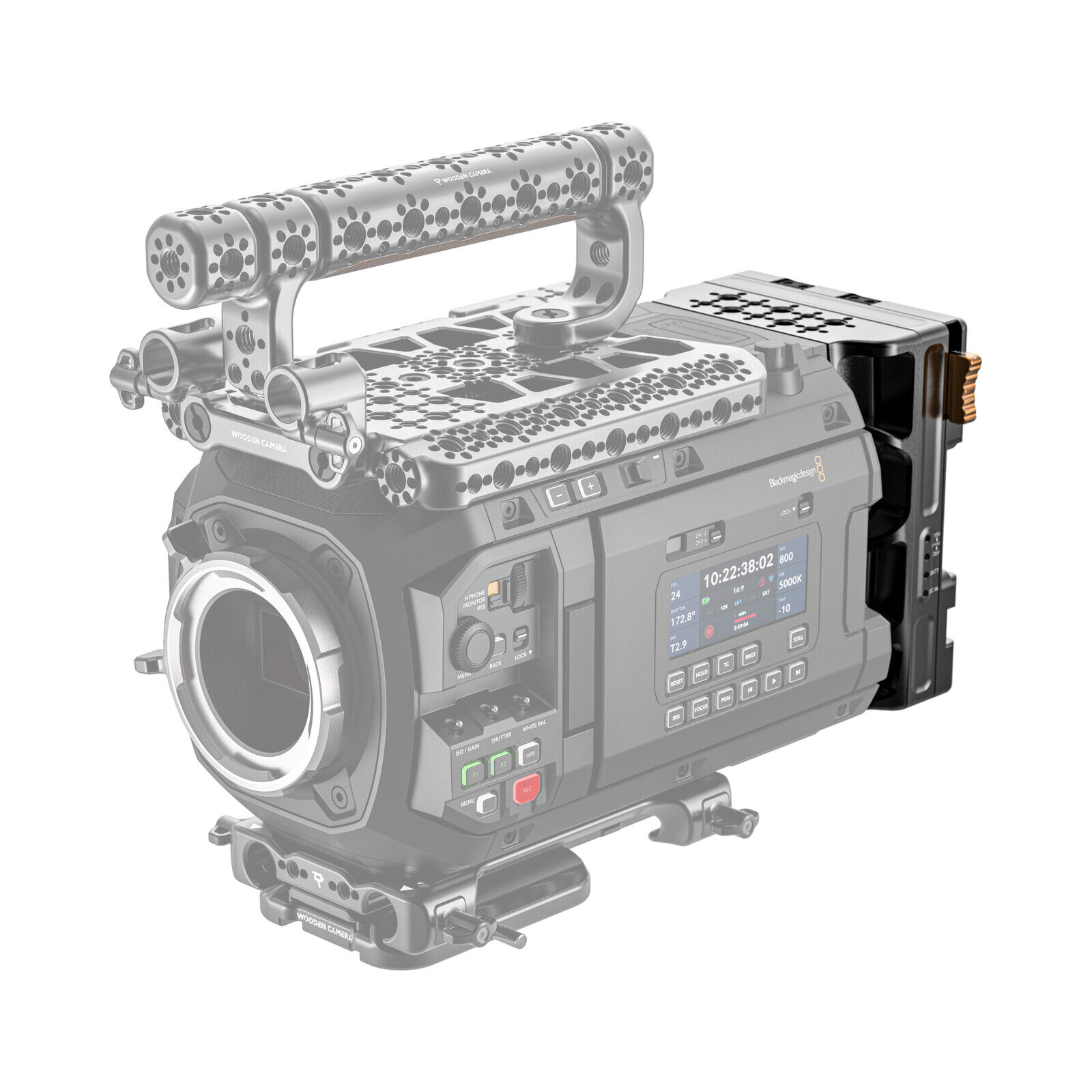

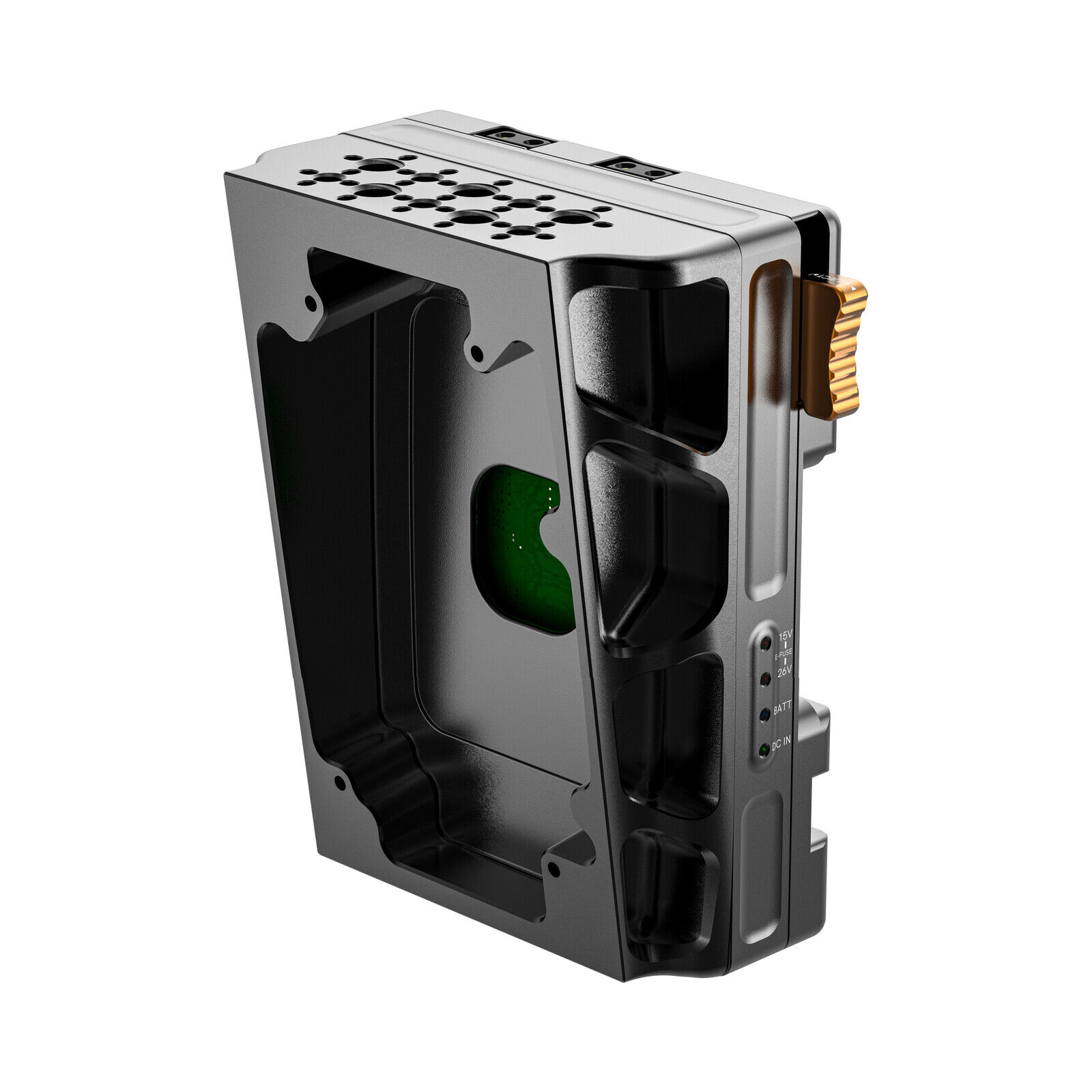

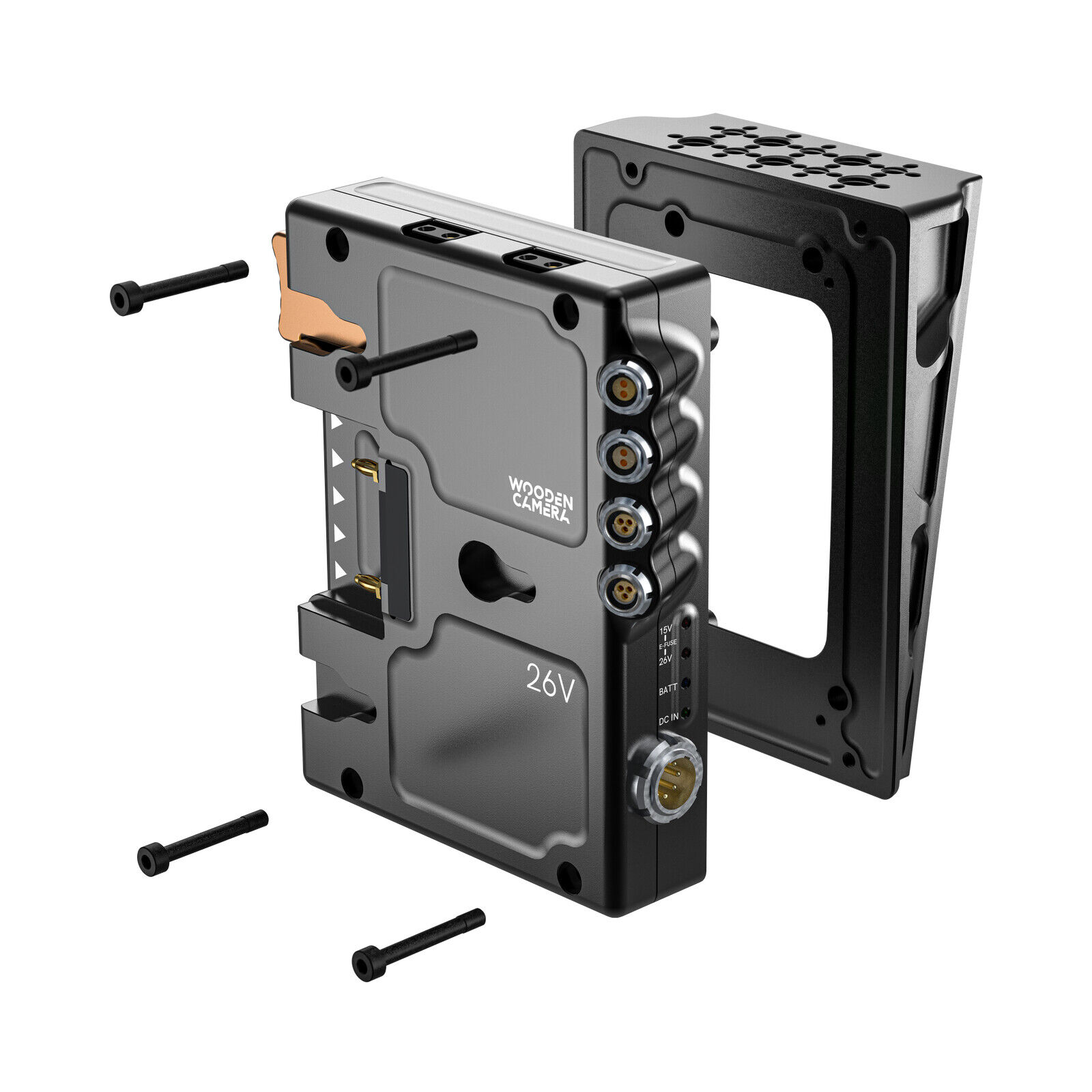

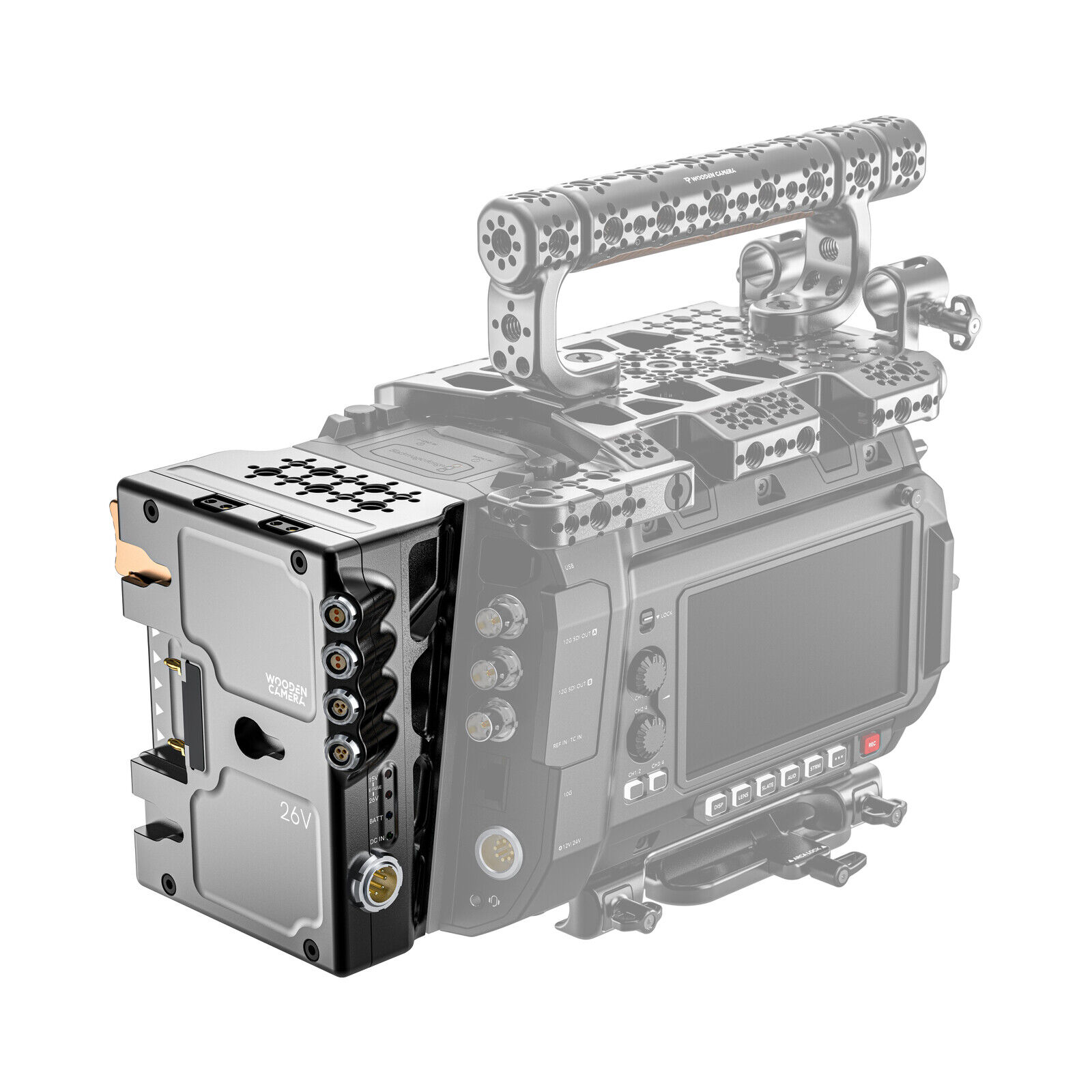

A single power and mounting solution for the URSA Cine and Immersive: 26 V Gold Mount Plus battery plate with integrated wedge on the back of the camera, with power distribution through the D-Box.
Features
- Outputs: 2 x 2-pin 12 V (5.8 A shared), 2 x D-Tap, 2 x 3-pin 24 V (3.8 A shared)
- Direct Molex connection to the camera, no external cabling
- Self-resetting electronic fuse
- Hot swap with external power through the 8-pin input
- 30 V 8.5 A (255 W) power supply with 2B 8-pin connector, 2.5 m DC cable
Note: The included power supply's AC cable has a US plug (100-240 V): a European cable is needed for use in Europe.
Specifications
| Compatibility | Blackmagic URSA Cine 12K, URSA Cine 17K, URSA Cine Immersive |
|---|---|
| Weight | 983.4 g |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | K10039 |
| Ean | 0810112520453 |
