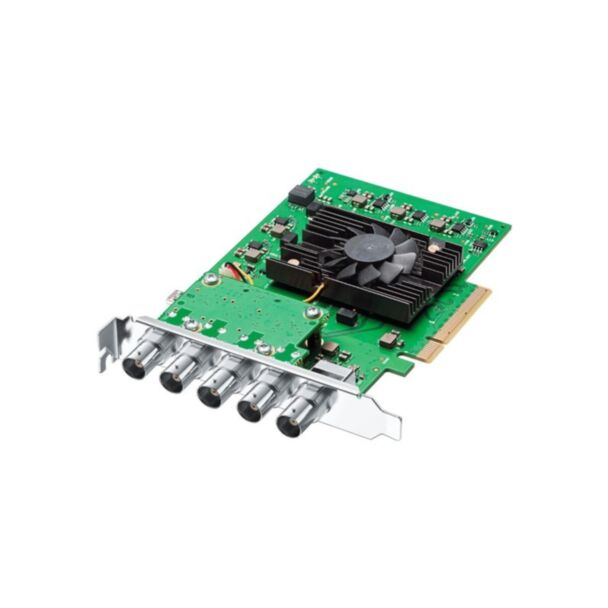

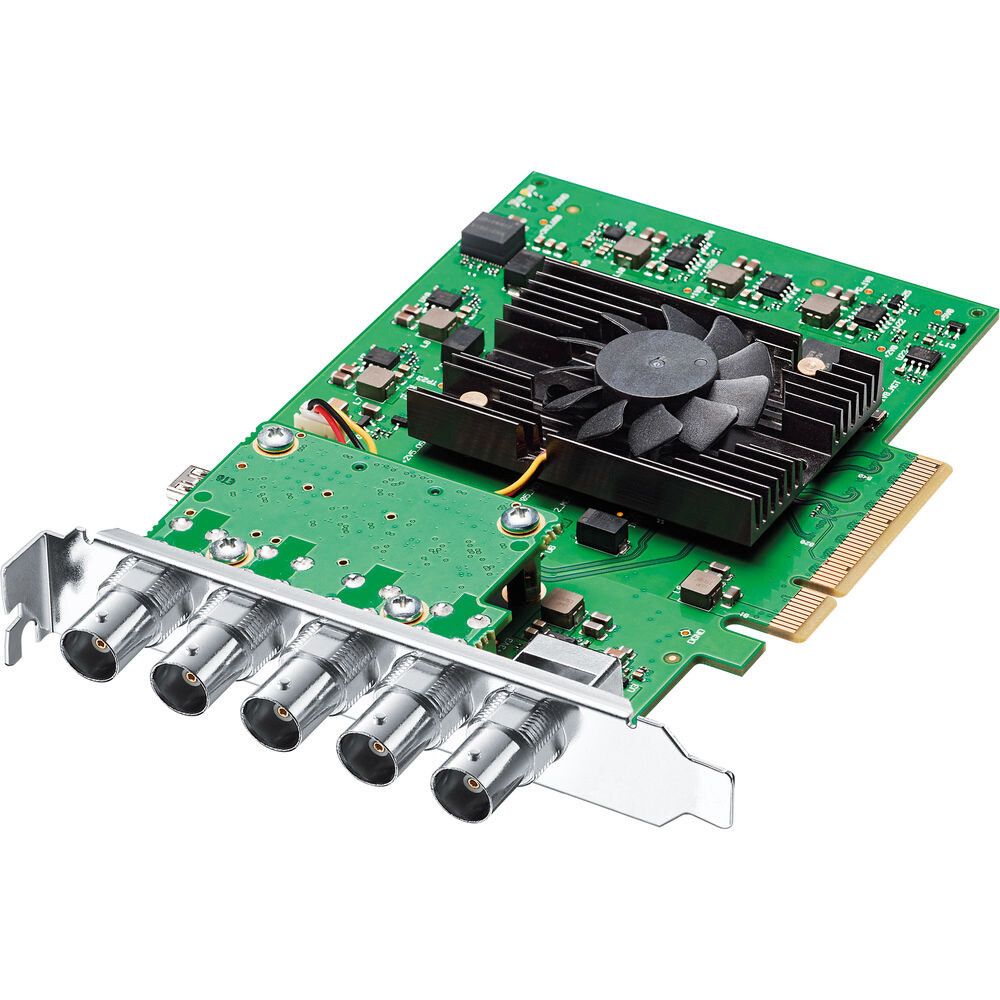

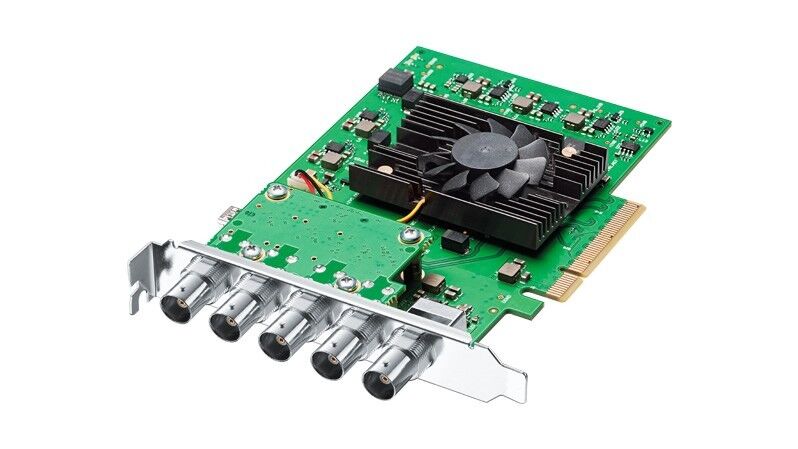

Blackmagic DeckLink 4K Pro

DeckLink 4K Pro is a PCI Express capture and playback card with 12G-SDI for working with high frame rate Ultra HD and DCI 4K formats at up to 60 frames per second. It supports both traditional 2D and 3D stereoscopic workflows, with full resolution deep color YUV and 12-bit RGB 4:4:4 images.

The card has two multi rate 12G-SDI inputs and two outputs with 16 channels of embedded audio, plus a reference input. Because the connections are multi rate, it works with SD, HD, Ultra HD and 4K formats, for film, television and commercial editing, visual effects and color grading.

Key features

• 2 x 12G-SDI inputs and 2 x 12G-SDI outputs, single link and dual link 4:2:2/4:4:4
• Ultra HD up to 2160p60 and DCI 4K up to 25p
• 8 and 10-bit YUV 4:2:2, 8, 10 and 12-bit RGB 4:4:4
• Left eye/right eye dual stream 3D capture and playback
• Hardware down conversion Ultra HD to HD and HD to SD on SDI B
• Hardware up conversion SD to 720p/1080 HD and cross conversion 720p/1080 HD on playback
• Hardware real time colorspace conversion on output

Compatibility

• DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Photoshop CC
• Mac OS X, Windows and Linux

In the box

• DeckLink 4K Pro
• SD card with software and manual

Specifications

• SDI video: 2 x 12Gb/s inputs, 2 x 12Gb/s outputs, SD/HD/2K/4K
• SDI audio: 16 channels embedded, 48 kHz 24-bit
• Sync input: black burst or tri-sync
• Computer interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane slots
• SDI compliance: SMPTE 259M, 292M, 296M, 372M, 425M Level A and B
• Color space: Rec. 601, Rec. 709
• Software included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and drivers
• Operating temperature: 5 to 40 °C
